Removal & Installation: Starter: Removal

WARNING: This page is about a different car, the 2003 BMW 540i, 2002 BMW 540i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip battery positive lead (1). See Fig 1 . Remove screws (2). Remove shield plate (3).
  2. Remove plug connection (1) of right oxygen sensor from retaining clip (2). See Fig 2 . Remove retaining clip (2) from transmission.
  3. Remove connections on starter motor. See Fig 3 .
  4. Remove both starter motor mounting bolts on transmission. See Fig 4 .
  5. Remove starter from transmission mount. See Fig 5 .
  6. To install, reverse removal procedure. Check starter motor pinion and ring gear for damage. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  .

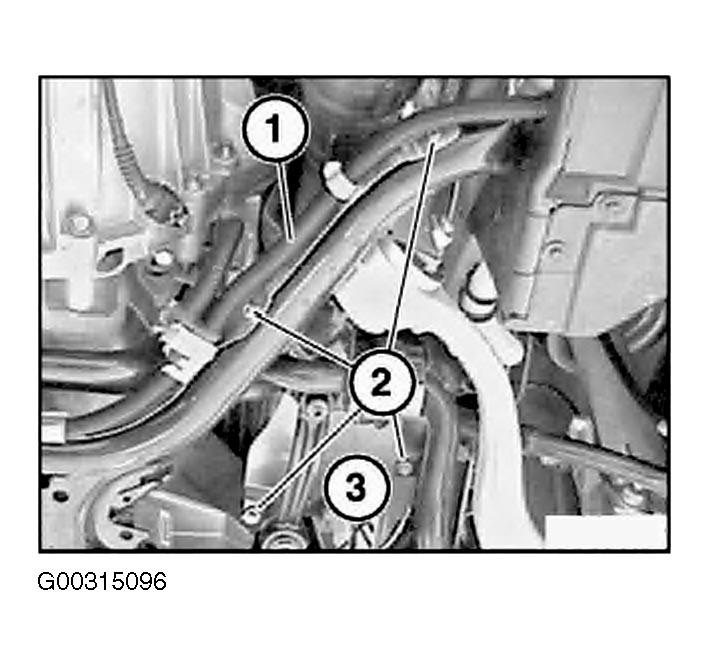

Fig 1: Identifying Battery Positive Lead
G00315096Courtesy of BMW OF NORTH AMERICA, INC.

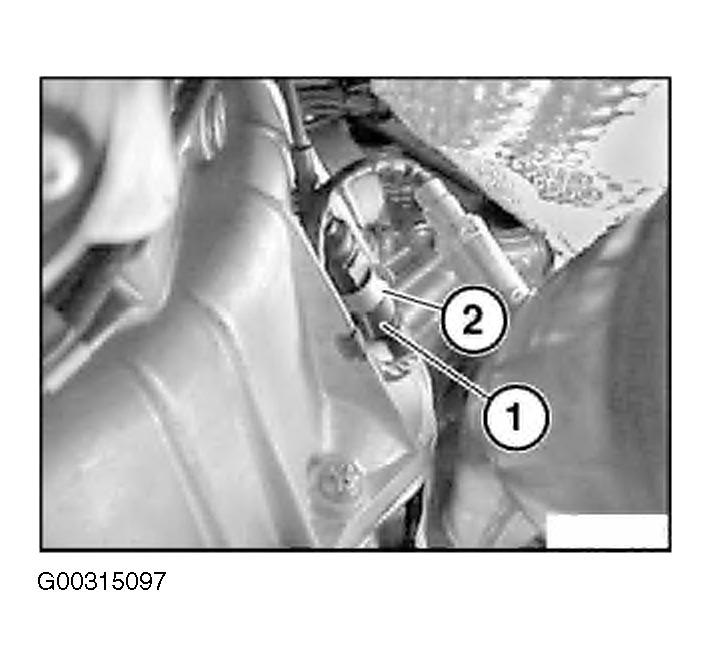

Fig 2: Removing Plug Of Right Oxygen Sensor
G00315097Courtesy of BMW OF NORTH AMERICA, INC.

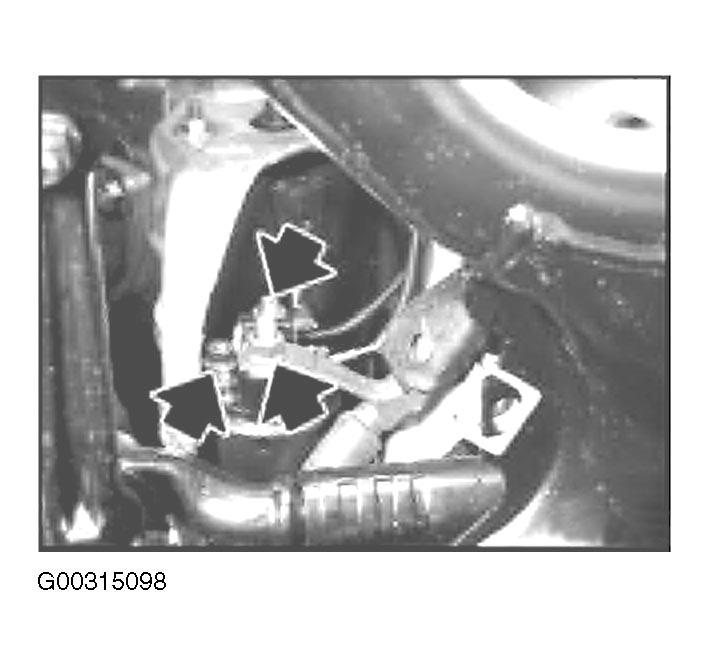

Fig 3: Removing Connections On Starter Motor
G00315098Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Locating Starter Motor Screws
G00315069Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Removing Starter Motor From Transmission Housing
G00315070Courtesy of BMW OF NORTH AMERICA, INC.
