51 16 .. Overview of Roller Sun Blind On Side Window In Rear Door

WARNING: This page is about a different car, the 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

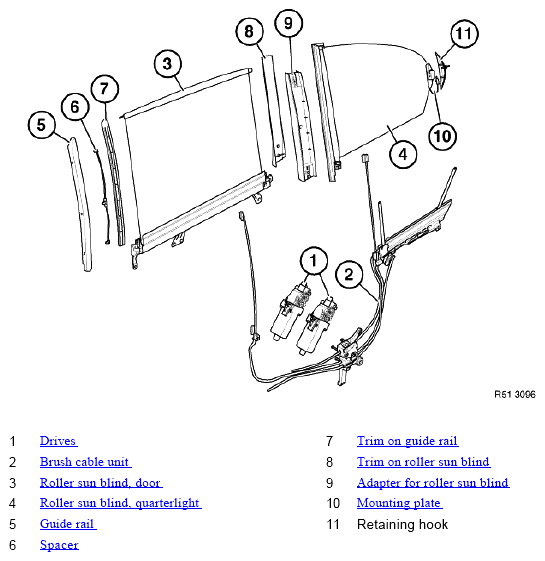

Fig 1: Identifying Roller Sun Blind On Side Window In Rear Door Components

Courtesy of BMW OF NORTH AMERICA, INC.
