Removal & Installation

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330i, 2005 BMW 330Ci, and 2005 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition. Remove starter. See STARTER .
Remove nut (1). See Fig 1 . Remove cable lug (2).
Remove screws (1). See Fig 2 .
Remove solenoid switch (1) and spring (2). See Fig 3 . Unhook pin (3).
To install, reverse removal procedure. Check pin (3) for wear and apply grease. Tighten nut for cable lug to specification. See TORQUE SPECIFICATIONS . DO NOT turn cable lug while tightening down.

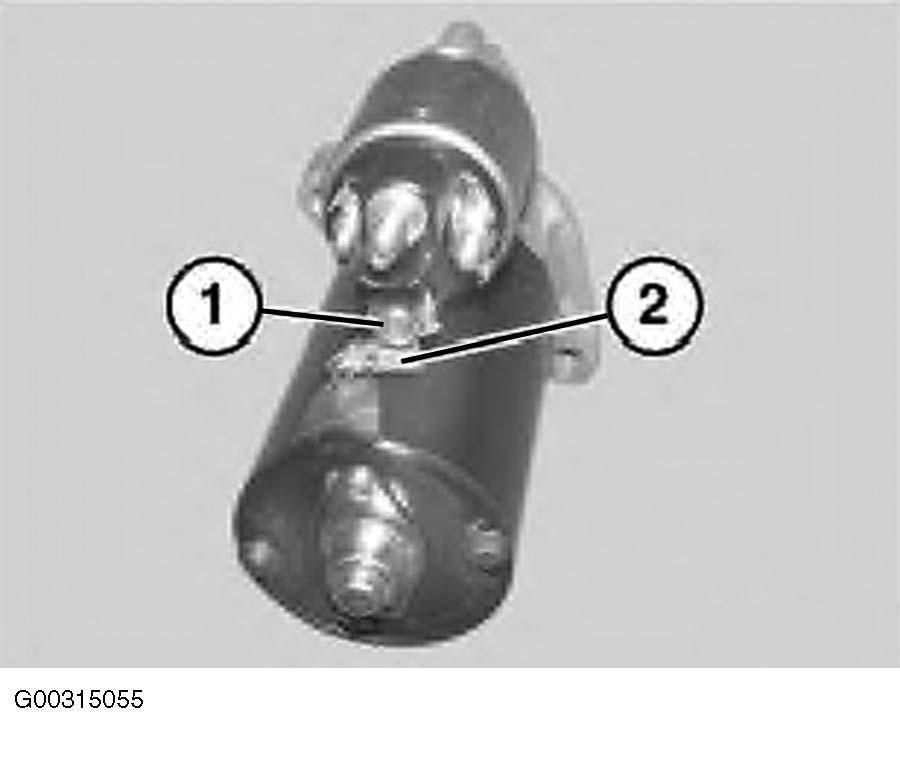

Fig 1: Removing Cable Lug

Courtesy of BMW OF NORTH AMERICA, INC.

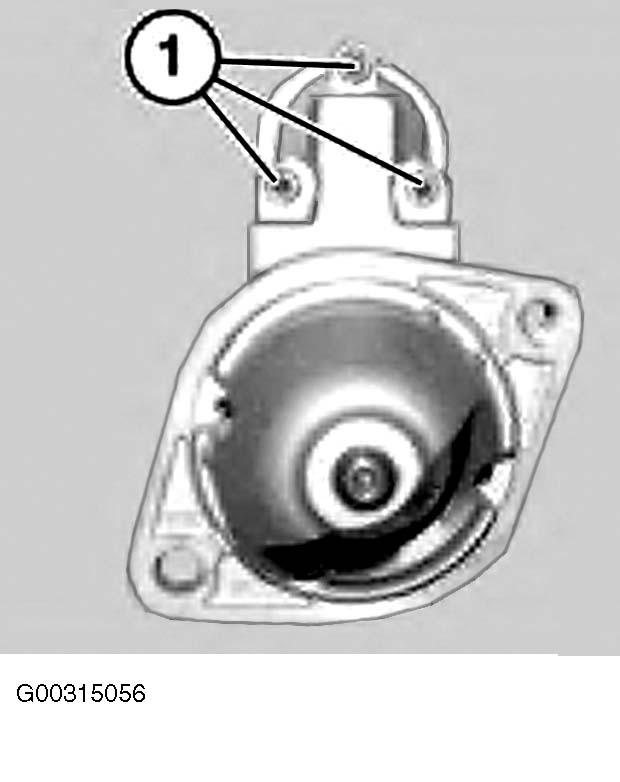

Fig 2: Removing Solenoid Switch Screws

Courtesy of BMW OF NORTH AMERICA, INC.

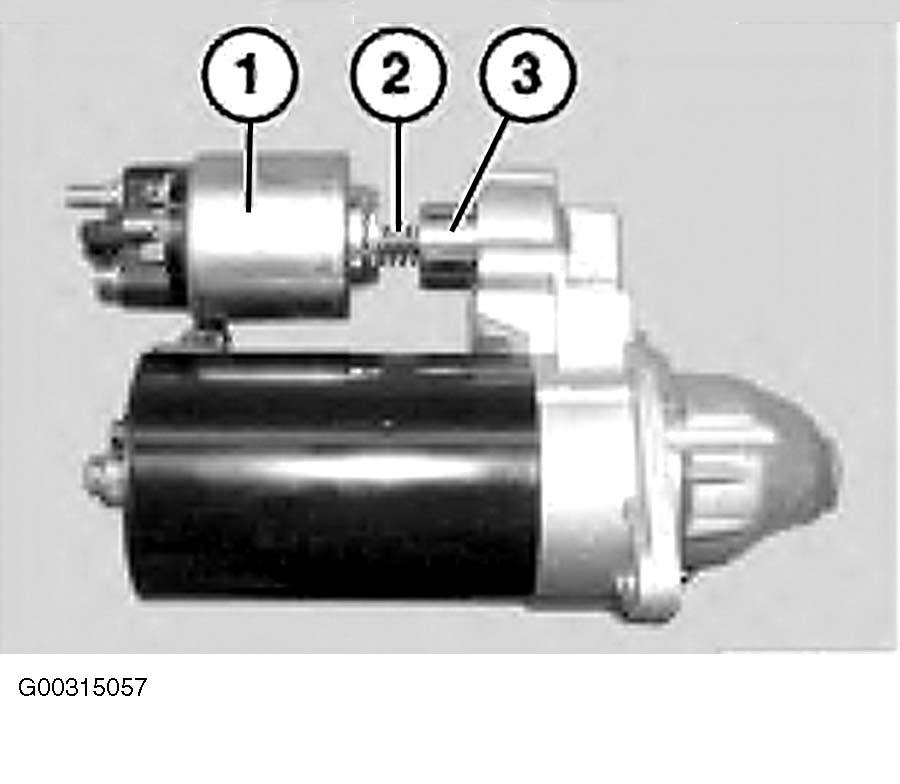

Fig 3: Removing Solenoid Switch

Courtesy of BMW OF NORTH AMERICA, INC.
