Removal & installation

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear brake discs. See BRAKE DISC (REAR) .
Using Special Tool (32 1 030), press stop (1) of adjusting spring back until retaining hook (2) engages in stop (1). See Figure. This will lock adjuster unit (ASZE).
Disconnect return spring (1) with brake spring pliers. See Fig 1. Figure illustrates right side. Left side is mirror image.
Disconnect return spring (1) with brake spring pliers. See Fig 2.
Turn clamping pins (1) with Special Tool (34 4 000) through 90 degrees and disconnect. See Fig 3. Remove brake shoes (2).
To install, reverse removal procedure. Check return springs and replace, if necessary. Pay attention to installation position of adjustment screw (2). See Fig 1. Apply a thin coat of threads of grease to bushing and screw threads.
Adjust parking brake. See PARKING BRAKE under ADJUSTMENTS.

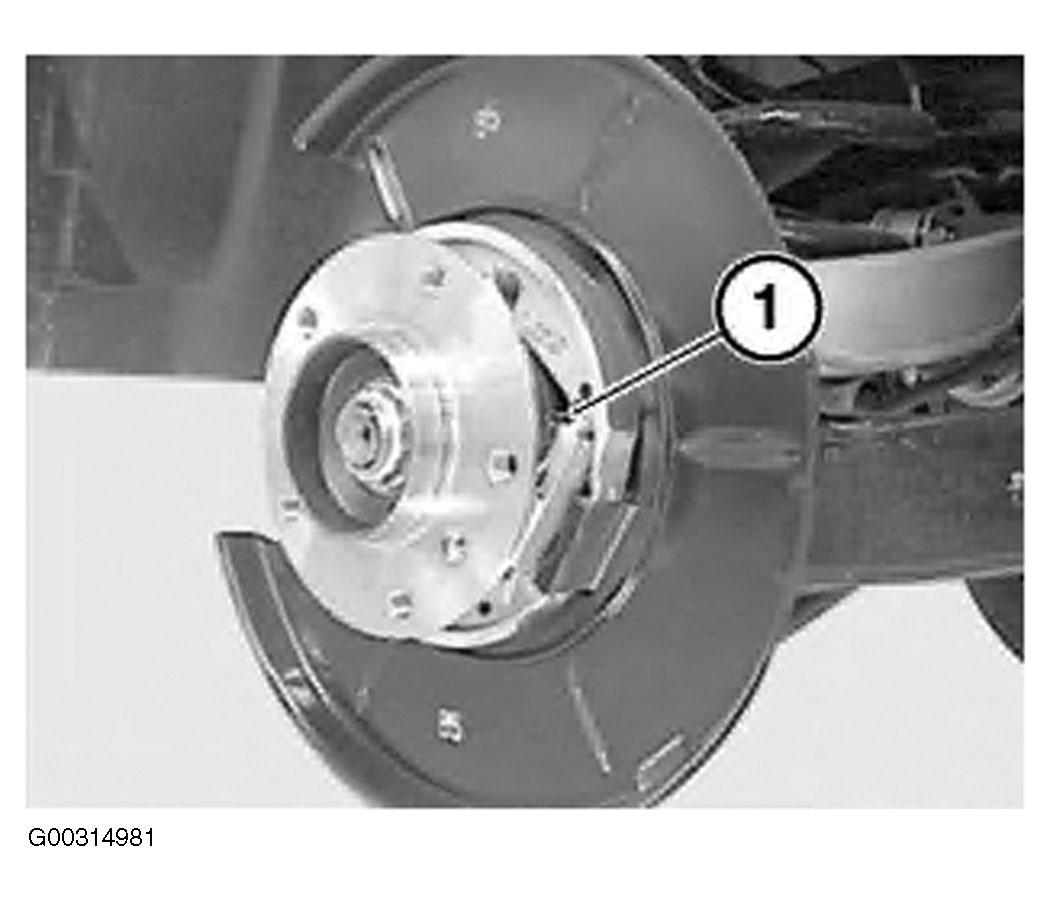

Fig 1: Locating Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

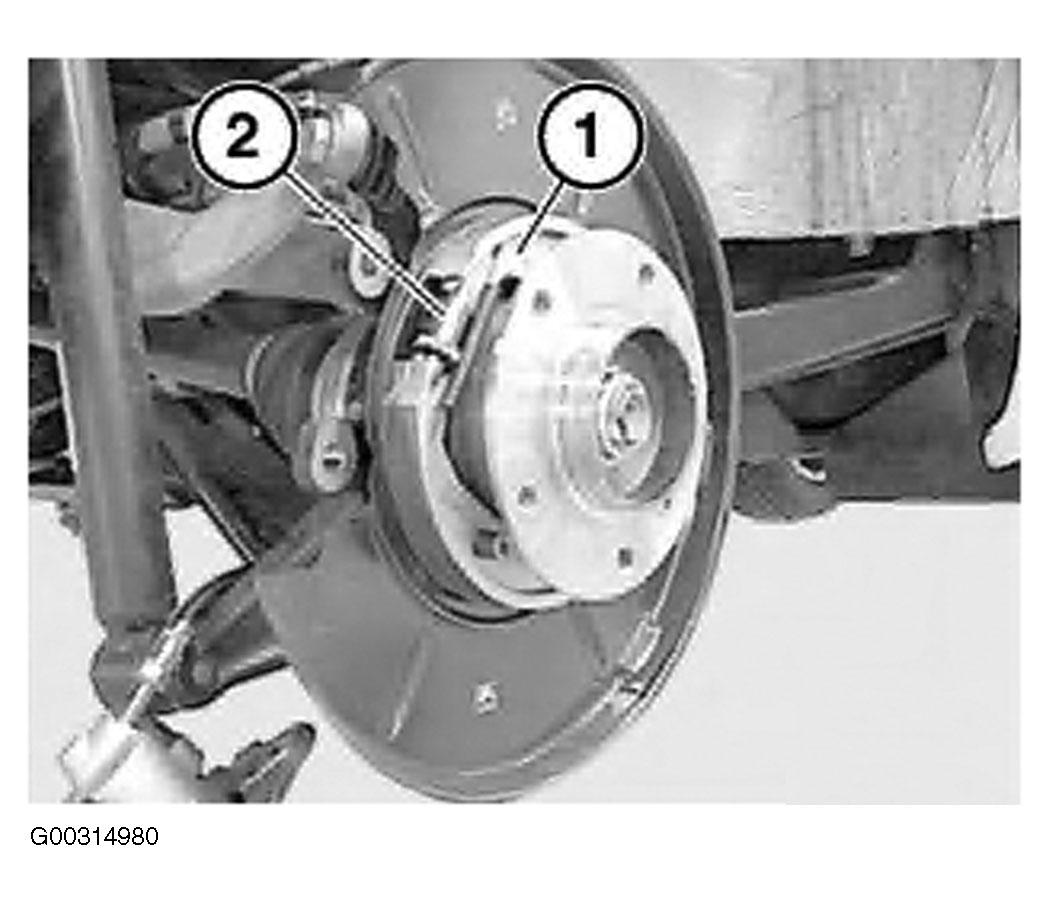

Fig 2: Disconnecting Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

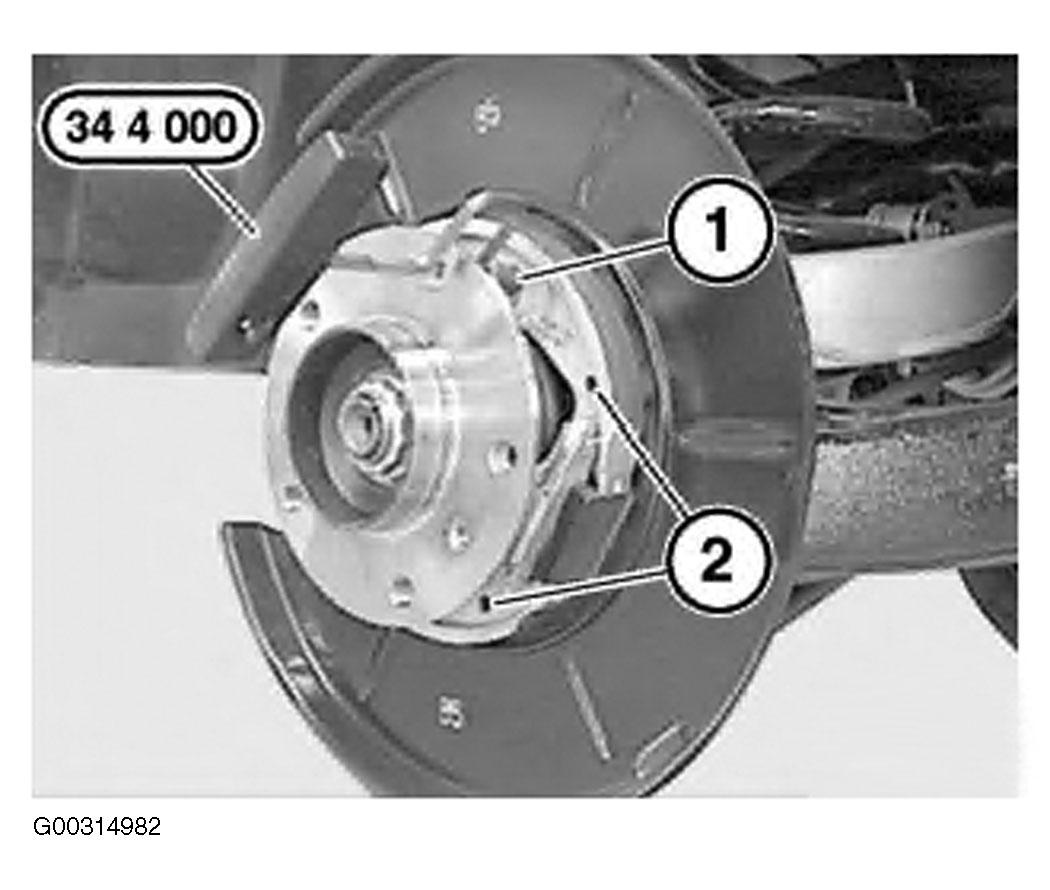

Fig 3: Removing Parking Brake Shoes

Courtesy of BMW OF NORTH AMERICA, INC.
