Removal (Except M3)

WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel(s).
  2. Remove axle shaft. See DRIVE AXLE SHAFTS (REAR) under REMOVAL & INSTALLATION in AXLE SHAFTS article.
  3. Remove brake disc. See BRAKE DISC .
  4. Screw Special Tool (33 2 116) onto drive flange with wheel studs. Drive out drive flange with Special Tool (33 4 201/202/203). See Fig 1.
  5. If necessary, pull off bearing inner race using Special Tool (00 7 500) and a thrust piece. See Fig 2.
  6. It may be necessary to remove inner wheel bearing race with the following procedure:
    • Detach wheel bearing inner race with Special Tool (33 4 400) through groove in bearing inner race.
    • According to outside diameter of bearing inner race, use Special Tool (33 4 401). See Fig 3. To determine additional Special Tool, see REMOVING INNER WHEEL BEARING RACE .
    • Tension Special Tool (33 4 401) with wrenches (33 4 403) and (33 4 404) until it can still just be turned in groove. See Fig 4.
    • Screw in Special Tool (33 4 402). Detach inner bearing race.
  7. Remove circlip. See Fig 5.
  8. Remove wheel bearing with Special Tool (33 4 031/ 041/ 042/ 043/ 045). See Fig 6.
REMOVING INNER WHEEL BEARING RACE

Diameter Special Tool
45-51 mm 33 4 405
50-55 mm 22 4 406
55-61 mm 33 4 407
Fig 1: Removing Drive Flange
G00103328Courtesy of BMW OF NORTH AMERICA, INC.

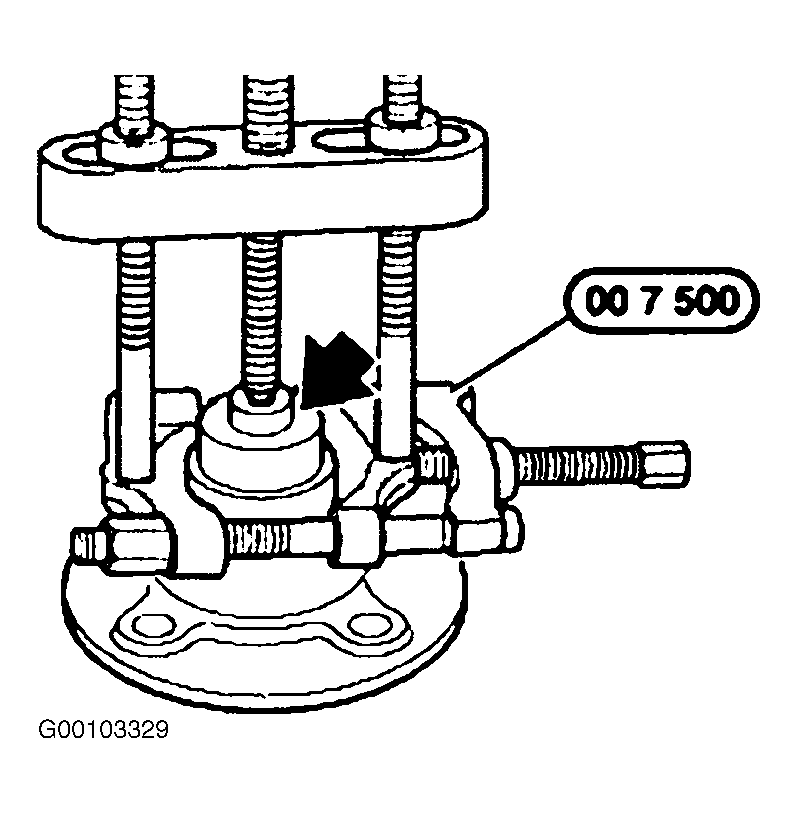

Fig 2: Pulling Off Bearing Inner Race
G00103329Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Detaching Wheel Bearing Inner Race
G00103330Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Using Special Tool (33 4 402)
G00103331Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Locating Circlip
G00103332Courtesy of BMW OF NORTH AMERICA, INC.

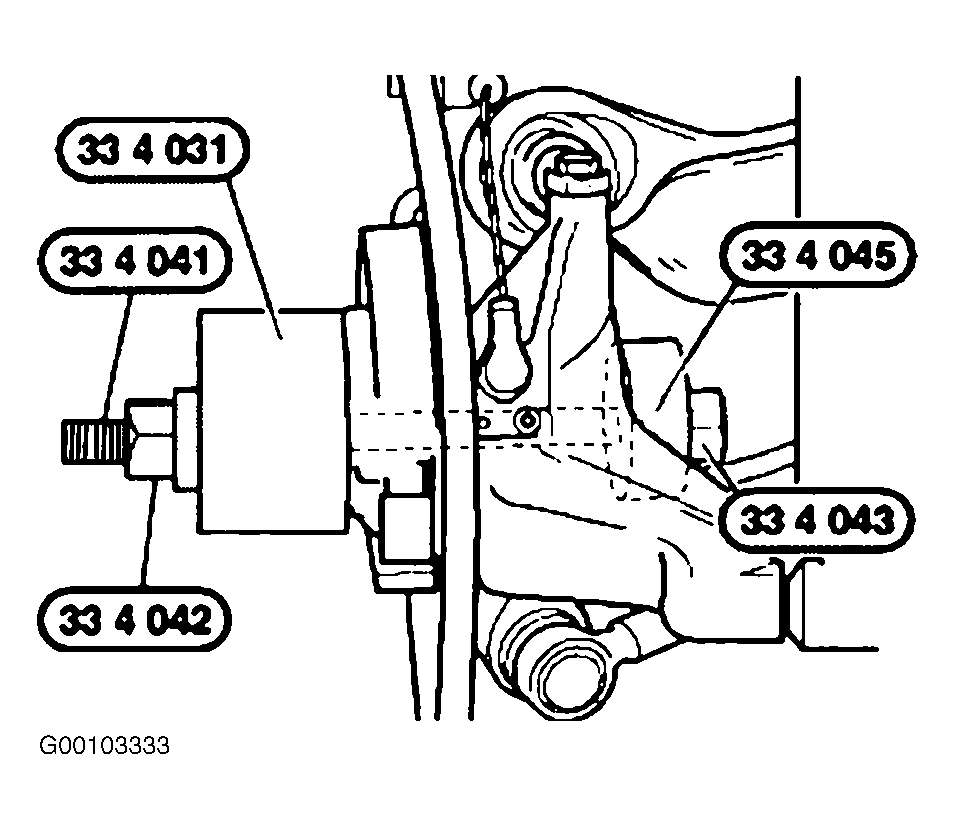

Fig 6: Removing Wheel Bearing
G00103333Courtesy of BMW OF NORTH AMERICA, INC.
