Removal & Installation
WARNING: This page is about a different car, the 2004 BMW Z4 and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
- Switch off ignition. Remove radiator cover. See RADIATOR COVER .

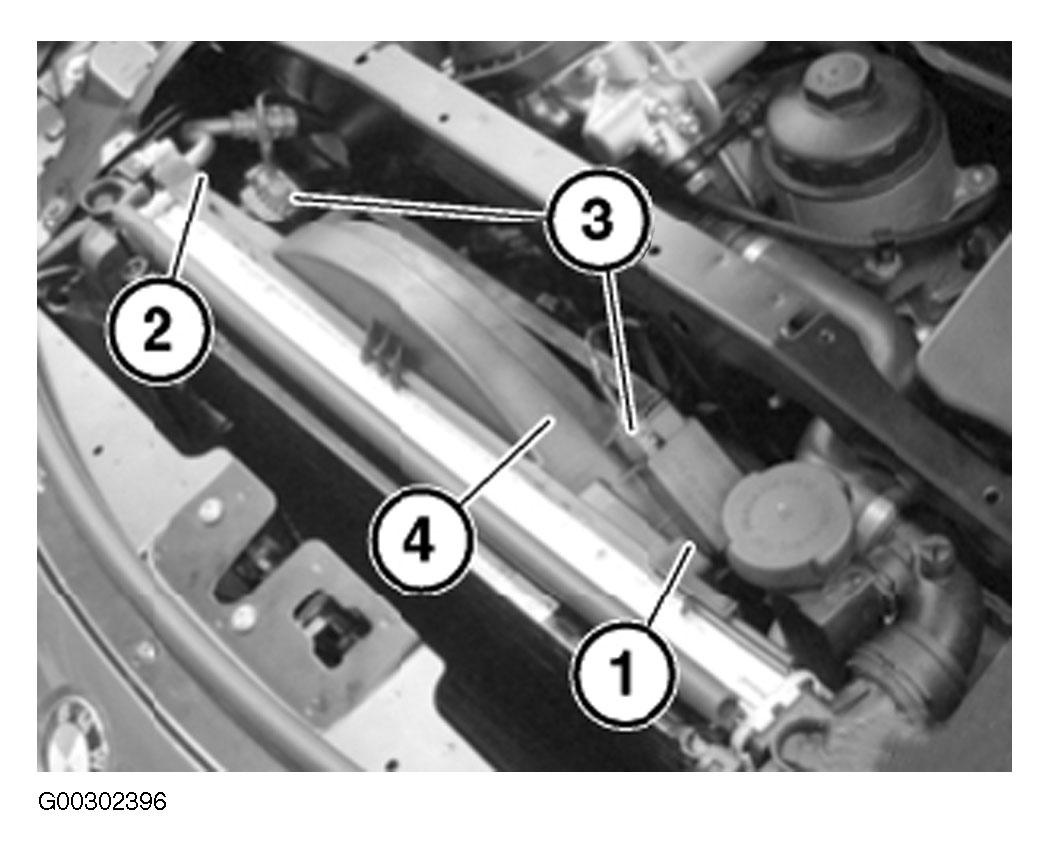

- Lift out expansion rivet (1). See Fig 1 . Remove screws (2). Unlock and detach plug connections (3). Remove fan cowl (4) towards top.
- To install, reverse removal procedure. Install original Automatic Recirculated Air Control (AUC) sensor to new fan cowl if replacing fan cowl.
