67 61 541 Removing and installing/replacing drive for rear window

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks: Remove rear window.

Release screws (1) and remove cap (2).

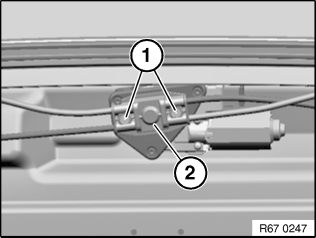

Fig 1: Release Screws (1) And Remove Cap (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Note: If necessary, mark drive shafts (1). Detach drive shafts (1) in each case in direction of arrow.

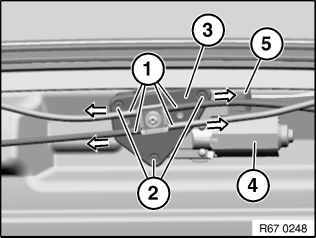

Fig 2: Detach Drive Shafts (1) In Each Case In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Do not mix up drive shafts (1), pay attention to relevant markings.

Unfasten plug connection (5) and disconnect. Release screws (2), tightening torque 4.25-5.75 N.m. Remove plate (3) together with drive for rear window (4).
