67 61 531 Removing and installing/replacing drive for convertible top fastener

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks: Move convertible top compartment lid into service position. Remove cowl panel trim.

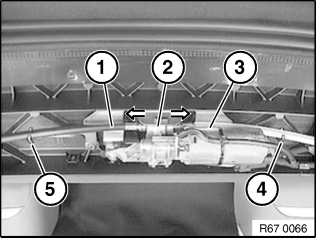

Unhook drive shafts (1) and (3) from mounts (5) and (4). Pull off drive shafts (1) and (3) in direction of arrow from drive for convertible top fastener (2).

Fig 1: Unhook Drive Shafts (1) And (3) From Mounts (5) And (4) And Convertible Top Fastener (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Do not mix up drive shafts (1) and (3), pay attention to relevant markings.

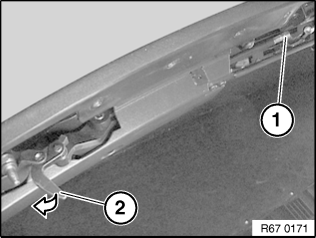

Installation: Turn relevant drive shaft (1) to open convertible top lock (2) completely to outer side of car.

Fig 2: Turn Relevant Drive Shaft (1) To Open Convertible Top Lock (2) Completely To Outer Side Of Car

Courtesy of BMW OF NORTH AMERICA, INC.

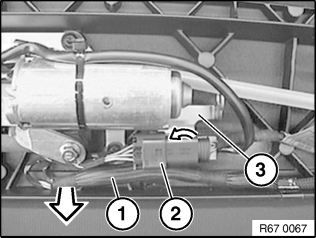

Pull out wiring harness (1) in direction of arrow.

Installation: Ensure wiring harness (1) is laid correctly.

Turn plug connections (2) completely in direction of arrow and unclip from fixture (3). Unlock plug connections (2) and disconnect.

Fig 3: Turn Plug Connections (2) Completely In Direction Of Arrow And Unclip From Fixture (3)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug housing (3) and disconnect in direction of arrow from plug housing (4).

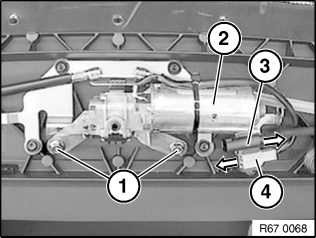

Release nuts (1) and remove drive for convertible top lock (2). Tightening torque 10 N.m.

Installation: Screws for nuts (1) are microencapsulated.

Fig 4: Removing Drive For Convertible Top Lock (2)

Courtesy of BMW OF NORTH AMERICA, INC.
