67 61 007 Removing and installing/replacing drive with gear (rear) for slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

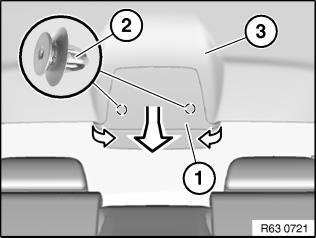

Detach cover for auxiliary brake light (1) on both sides in direction of arrow and unclip at points (2). Feed cover for auxiliary brake light (1) in direction of arrow out of roofliner (3) and remove.

Fig 1: Detach Cover For Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

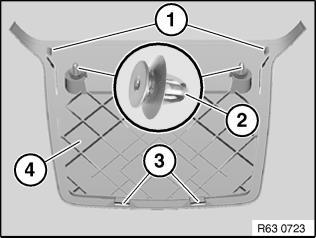

Installation: Retaining bar (1), clips (2) and guides (3) must not be damaged. Make sure cover for auxiliary brake light (4) is correctly seated.

Fig 2: Ensure Cover For Auxiliary Brake Light (4) Is Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.

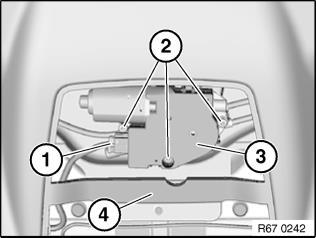

NOTE: Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

Unfasten plug connection (1) and disconnect. Release screws (2), tightening torque 3.5 Nm.

NOTE: Screws (1) are microencapsulated.

Feed drive with gear for actuating slide/tilt sunroof (3) out of roofliner (4) and remove.

Fig 3: Unfasten Plug Connection (1) And Disconnect

Courtesy of BMW OF NORTH AMERICA, INC.

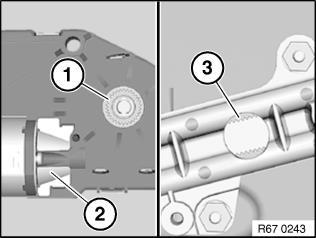

Installation: Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

Fig 4: Insert Gear Wheel (1) Of Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Initialize slide/tilt sunroof
