63 25 000 Removing and installing/replacing supplementary brake light (from 09/2007)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove trim for rear lid. See 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID .

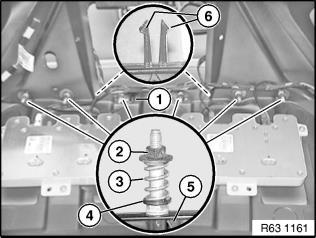

Disconnect plug connection (1). Unscrew nuts (2). Tightening torque 63 25 1AZ . Remove compression springs (3) and washers (4). Unlock safety hooks (6) and remove supplementary brake light (5) in outward direction from rear lid.
Installation: Make sure seal is correctly seated on supplementary brake light (5). Safety hooks (6) must not be damaged or missing. Make sure safety hooks (6) are correctly engaged on rear lid. Tighten nuts (2) from inside outward.
