52 24 408 Replacing backrest cover for left or right rear seat

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050 . See SEATS - SPECIAL TOOLS .
64 1 020 . See HEATING AND AIR CONDITIONING - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove backrest for rear seat

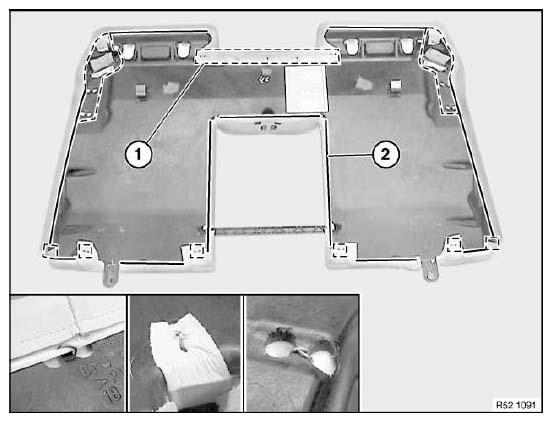

Fig 1: Identifying Rear Seat Retainers And Piping Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainers in areas (1).

Lever out piping in areas (2) with special tool 64 1 020 .

Detaching cover from padding:

Release all retainers in marked area.
Remove cover from padding.
Remove remaining retainers from cover and padding

Installation:

Insert new retainers with special tool 52 0 050 .

Fig 2: Identifying Retainers Area

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into pockets

Fig 3: Identifying Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace head restraint guide (1).

Lever out detent ring (2) with plastic wedge.

Fig 4: Identifying Restraint Guide And Detent Ring

Courtesy of BMW OF NORTH AMERICA, INC.
