52 24 400 Replacing seat cover for rear seat

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050 . See SEATS - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove rear seat

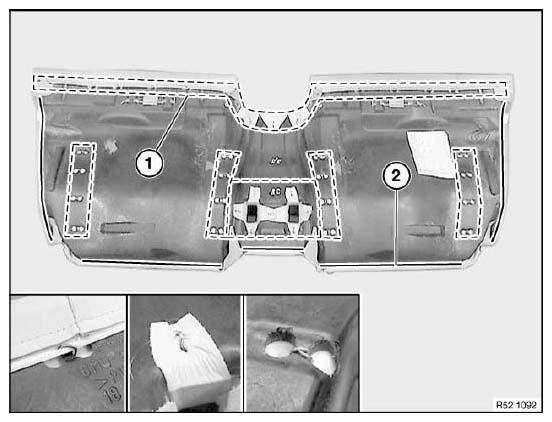

Fig 1: Identifying Rear Seat Retainers And Piping Area
Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainers in areas (1).

Lever out piping in areas (2) with special tool 64 1 020.

Detaching cover and padding:

Release all retainers in marked area.
Remove seat cover from padding.
Remove remaining retainers from cover and padding

Installation:

Insert new retainers with special tool 52 0 050 .

Fig 2: Identifying Retainers Area
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in take-up for trim wires of new cover
Push trim wires into new seat cover

Fig 3: Identifying Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace head restraint guide (1).

Lever out detent ring (2) with plastic wedge.

Fig 4: Identifying Head Restraint Guide And Detent Ring

Courtesy of BMW OF NORTH AMERICA, INC.
