52 13 400 Replacing seat cover on left or right front seat (normal/manual)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove inner cover
Remove cover (normal/electric)

WARNING: US/CDN front passenger seat (with OC3 mat) only: To avoid damaging the OC3 mat, it is essential to carry out the following operations with extra care.

When replacing seat cover: If seat cover is defective, seat cover and padding with OC3 mat must be replaced together. New seat cover is supplied with padding, OC3 mat and if necessary seat heating.

When replacing padding with OC3 mat: If OC3 mat or padding is defective, both parts may only be replaced together. These must be fitted with the seat cover from the car.

Up to build date 09/05: Enabling seat occupancy detector (OC3 mat):

Connect BMW diagnosis system
Release seat occupancy detector
Clear fault memory if necessary

Build date from 09/05: Enabling seat occupancy detector (OC3 mat)

Connect BMW programming system
Code airbag control unit
Clear fault memory if necessary

Seat with electric actuating unit only:

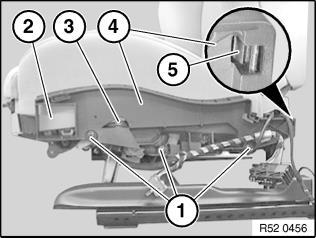

Release screws (1)
Pull trim (2) out a little and release screw (3).
Release clip (5) from carrier (4).
Remove trim (2) and carrier (4).

Fig 1: Remove Trim (2) And Carrier (4)

Courtesy of BMW OF NORTH AMERICA, INC.

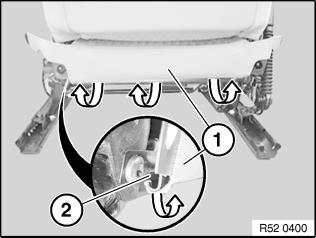

Installation: Cable holders (1) on carrier (2) must not be damaged.

Fig 2: Cable Holders (1) On Carrier (2) Must Not Be Damaged

Courtesy of BMW OF NORTH AMERICA, INC.

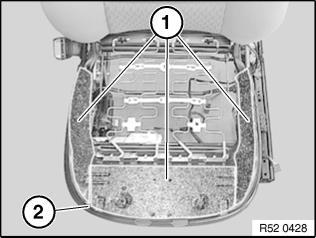

Detach seat cover (1) from seat frame (2).

Fig 3: Detach Seat Cover (1) From Seat Frame (2)

Courtesy of BMW OF NORTH AMERICA, INC.

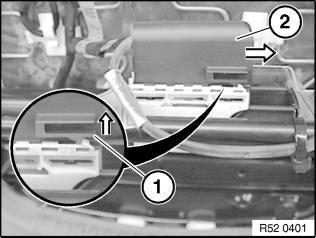

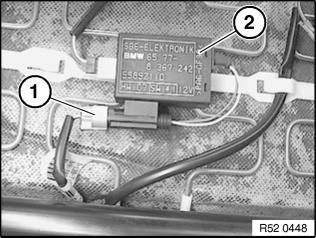

Version with seat occupancy detector: If necessary, disconnect plug connection (1) from control unit (2).

Fig 4: Disconnect Plug Connection (1) From Control Unit (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating: If necessary, lever catch (1) towards top and detach cover (2).

Fig 5: Lever Catch (1) Towards Top And Detach Cover (2)

Courtesy of BMW OF NORTH AMERICA, INC.

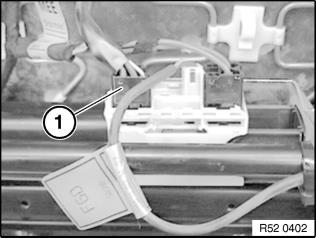

Disconnect plug connection (1) from seat heating.

Fig 6: Disconnect Plug Connection (1) From Seat Heating

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from seat heating. Expose cable (2).

Fig 7: Disconnect Plug Connection (1) From Seat Heating

Courtesy of BMW OF NORTH AMERICA, INC.

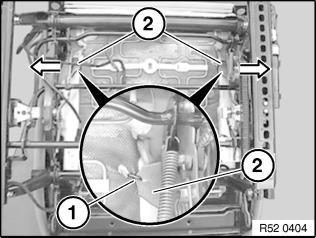

Release retainers (1) on left/right. Pull out cover tabs (2) on left/right.

Fig 8: Pull Out Cover Tabs (2) On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cover welt (1) completely from seat frame (2).

Fig 9: Pull Out Cover Welt (1) Completely From Seat Frame (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Begin assembly in middle. Cover piping (1) and seat frame (2) have markings for middle position

Fig 10: Cover Piping (1) And Seat Frame (2) Have Markings For Middle Position

Courtesy of BMW OF NORTH AMERICA, INC.

Fold in tongues (1) on seat cover and push through under backrest (2) towards front.

Fig 11: Fold In Tongues (1) On Seat Cover And Push Through Under Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Model without seat heating and without seat occupancy detector: Remove seat cover (1) towards front/top.

Fig 12: Remove Seat Cover (1) Towards Front/Top

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or with seat occupancy detector: Pull seat cover (1) forward a little and feed cable (2) out. Remove seat cover (1) towards front/top.

Fig 13: Pull Seat Cover (1) Forward A Little And Feed Cable (2) Out

Courtesy of BMW OF NORTH AMERICA, INC.

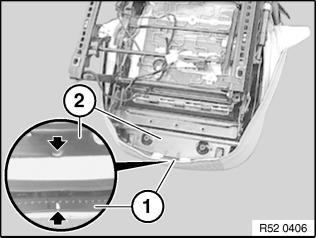

Installation: The padding is coated with wax to prevent grinding noises. Do not remove wax (1) on seat pan (2).

NOTE: The operation "Removing complete seat cushion" ends here.

Fig 14: Do Not Remove Wax (1) On Seat Pan (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing support: Detach retainers (1) at rear left/right from support (2).

Fig 15: Detach Retainers (1) At Rear Left/Right From Support (2

Courtesy of BMW OF NORTH AMERICA, INC.

Version with OC3 mat:

OC3 mat must not be kinked under any circumstances.

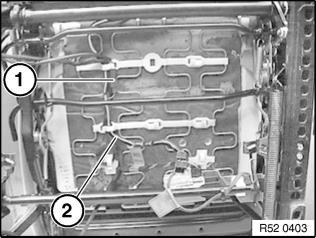

Detach all retainers in side area from longitudinal wires (1)

Pull trim wires (1) forward out of seat cover.

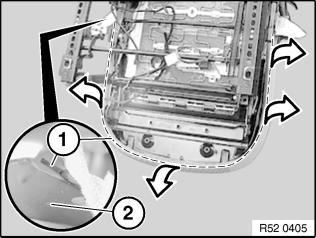

Carefully fold back seat cover and release retainers from cross-wires (2).

Remove seat cover from padding.

IMPORTANT: Remove all remnants of clips from seat cover and padding.

Fig 16: Pull Trim Wires (1) Forward Out Of Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Padding (1) with OC3 mat (2).

IMPORTANT: Important! No retainer remainders may be fitted as well. Handle OC3 mat with extreme care. Do not kink OC3 mat. Do not clamp OC3 mat. OC3 mat must lie without folds under seat cover.

Fig 17: Padding (1) With Oc3 Mat (2)

Courtesy of BMW OF NORTH AMERICA, INC.

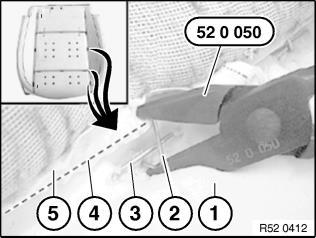

Installation: Bend new clips (2) with special tool 52 0 050.

Padding
Retainer
Trim wire in padding
Trim wire in cover
Seat cover

Fig 18: Bend New Clips (2) With Special Tool 52 0 050

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: The padding is coated with wax to prevent grinding noises. Do not remove wax (1) on padding (2).

Fig 19: Do Not Remove Wax (1) On Padding (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger seat only (replacing padding): Installation: In order to guarantee the function and fastening (adhesive strength) at the sticking surfaces of sensor mat (1), the foam most not show any traces of damage!

Replace the foam if it is hardened or damaged particularly in the area of the sticking surfaces. Fit new sensor mat (1) for passenger seat occupancy detector. Align new sensor mat (1) on foam (2). Feed plug (3) through bore hole (4).

Fig 20: Feed Plug (3) Through Bore Hole (4)

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger seat only (replacing sensor mat): Passenger seat only (replacing padding): Installation: Detach liner (1) at individual points and stick sensor mat (2) onto foam (3).

Fig 21: Detach Liner (1) At Individual Points And Stick Sensor Mat (2) Onto Foam

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work for "Replacing support" ends here.

Passenger seat only (replacing sensor mat): Pull plug (1) out of bore hole (2). In order to guarantee the function and fastening (adhesive strength) at the sticking surfaces of sensor mat (3), the foam most not show any traces of damage at all!

Replace the foam if it is hardened or damaged particularly in the area of the sticking surfaces. Cut sticking surfaces on sensor mat (3) with cutter knife or razor blade from foam without damaging the foam. Carefully remove sensor mat (3) from support (4).

Fig 22: Carefully Remove Sensor Mat (3) From Support (4)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Replacing sensor mat" ends here.

Replacing seat cover: Remove trim threads (1) from seat cover (2). Cut new seat cover (2) to size and insert trim threads (1). Cable (3) for seat heating.

Fig 23: Remove Trim Threads (1) From Seat Cover (2)

Courtesy of BMW OF NORTH AMERICA, INC.
