51 16 045 Removing and installing/replacing retaining ring on left or right door mirror (M5/M6)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove mirror glass .

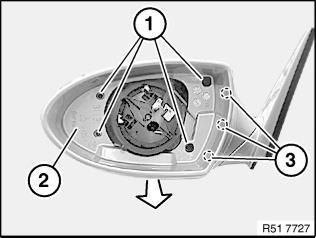

Release screws (1). Release retaining ring (2) at catches (3) and remove towards rear. Tightening torque, see 51 16 14AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES .

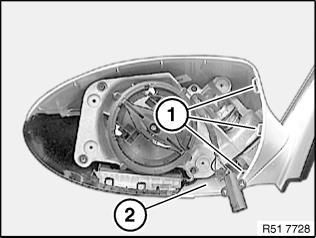

Installation: Catches (1) on door mirror (2) must not be damaged.
