51 12 156 Removing and installing rear bumper trim (M6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove luggage compartment wheel arch trim on left .
If necessary, remove number/license plate .

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release short and long screws (1) and (2) on wheel arch cover (3).

Fig 1: Release Short And Long Screws (1) And (2) On Wheel Arch Cover (3)

G00497556

Courtesy of BMW OF NORTH AMERICA, INC.

Release expander rivet (1) on bumper trim (2).

Fig 2: Release Expander Rivet (1) On Bumper Trim (2)

G00497557

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on bumper trim (2).

Fig 3: Release Screw (1) On Bumper Trim (2)

G00497558

Courtesy of BMW OF NORTH AMERICA, INC.

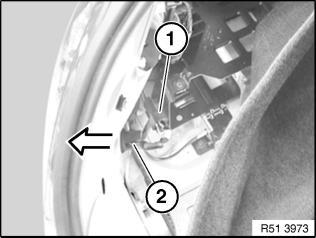

Disconnect plug connection (1) and feed out wiring harness with cable grommet (2) in direction of arrow.

Fig 4: Feed Out Wiring Harness With Cable Grommet (2) In Direction Of Arrow

G00497559

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper trim (2). Unclip bumper trim (2) to side panel outwards. Remove bumper trim (2) towards rear with aid of a 2nd person.
