51 11 050 Removing and installing/replacing carrier for front bumper trim (M6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim (M6) .

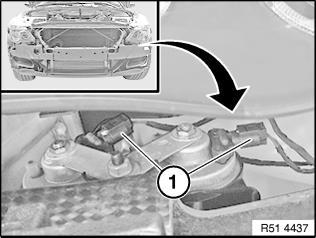

Disconnect plug-in contacts (1).

Fig 1: Disconnect Plug-In Contacts (1)

Courtesy of BMW OF NORTH AMERICA, INC.

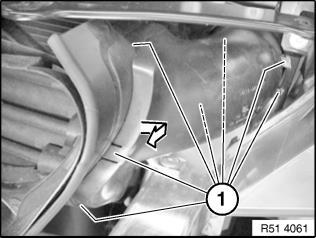

Unclip catches (1) on air duct. Remove air duct in direction of arrow.

Fig 2: Unclip Catches (1) On Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Catches (1) on air duct (2) must not be damaged.

Fig 3: Catches (1) On Air Duct (2) Must Not Be Damaged

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Carrier must not be separated from deformation elements.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

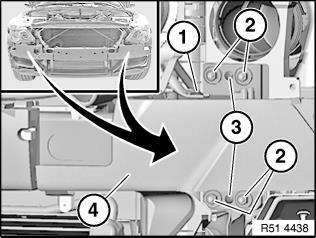

Release screw (1). If necessary, drill out rivets (3). Unfasten screws (2). Remove carrier (4) with deformation element towards front.

Installation: If necessary, use screws and locking pins (instead of rivets) to secure deformation element. Tightening torque, see 51 11 4AZ in 51 11 FRONT BUMPER .

Fig 4: Removing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

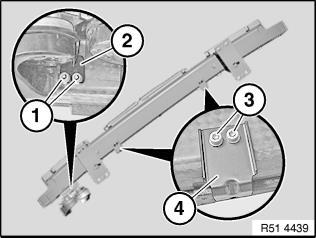

Replacement: Release screws (1) and remove holder (2) with fanfare horn. If necessary, release screws (3) and remove holder (4). If necessary, remove impact absorber.

Fig 5: Release Screws (1) And Remove Holder (2) With Fanfare Horn

Courtesy of BMW OF NORTH AMERICA, INC.
