34 33 075 Removing and installing/replacing vacuum pump (S85)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read and comply with General Information . See 34 00 ... GENERAL INFORMATION
- Remove lower section of microfilter housing. 64 31 061 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER HOUSING LOWER SECTION
IMPORTANT:
Before starting work, press the brake pedal to the floor several times to reduce the vacuum pressure in the brake booster. This makes it easier to detach the lines.

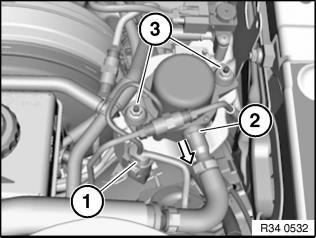

Disconnect plug connection (1). Unlock quick-release fastener (2) and detach vacuum hose. Release nuts (3) and remove vacuum pump.
