33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Release nut (1); if necessary, grip at Torx socket. Installation note: Replace self-locking nut. Tightening torque, see 33 55 2AZ in 55 STABILIZER BAR .

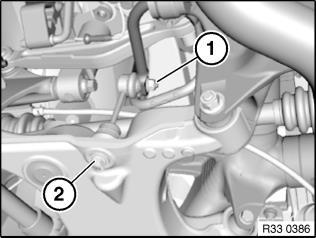

Fig 1: Identifying Nuts (1) And (2)

Release nut (2); if necessary, grip at Torx socket. Remove anti-roll bar link. Installation note: Replace self-locking nut. Tightening torque, see 33 55 2AZ in 55 STABILIZER BAR .
