23 42 620 Replacing clutch valve (GS7S47BG SMG)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

It is essential to adhere to conditions of absolute cleanliness.

Any dirty parts must be cleaned before the clutch valve is loosened.

After completion of work, check HYDRAULIC OIL LEVEL .

Bleed clutch slave cylinder/hydraulic line.
Teach in characteristic clutch-valve values.
Teach in clutch slipping point (warranty).

Only use the approved hydraulic oil: Pentosin CHF11S (BMW part number 81 22 9 407 758, 1-litre can)

Failure to comply with this instruction will result in serious damage to hydraulic unit.

Necessary preliminary work:

Hydraulic pressure reduction (transmission/clutch)
Remove GEARBOX

Disconnect connector (1).

Unfasten screws (2).

Tightening torque: 2.9 Nm

Installation note:

Replace screws.

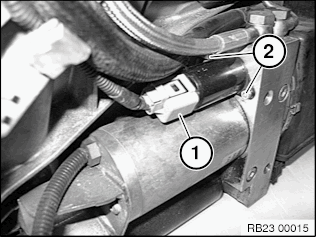

Fig 1: Identifying Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Force must be applied to remove the valve.

Pull clutch valve (1) out of pump block.

Installation note:

Observe installation position of valve.

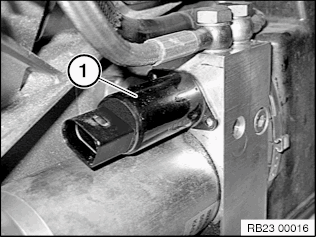

Fig 2: Identifying Clutch Valve

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ensure that sealing rings (1) are present after clutch valve is removed.

Installation note:

Before installing clutch valve, moisten sealing rings with hydraulic fluid (Pentosin CHF11S, BMW part number 81 22 9 407 758, 1-litre can).

Fig 3: Identifying Sealing Rings On Clutch Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1).

Before installing, moisten sealing ring with hydraulic fluid (Pentosin CHF11S, BMW part number 81 22 9 407 758, 1-litre can).

The sealing ring must not be shifted or damaged when installing the valve.

Before tightening the valve, ensure that it is positioned correctly.

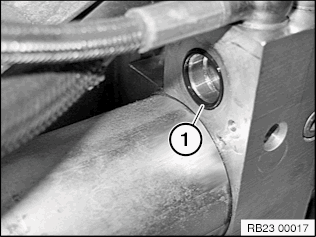

Fig 4: Locating Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Insert clutch valve (1) as far as possible and pull in with valve screws.

Tightening torque: 2.9 Nm

Fig 5: Identifying Clutch Valve

Courtesy of BMW OF NORTH AMERICA, INC.
