33 55 040 Replacing Stabilizer Links For Stabilizer
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 31 1 140

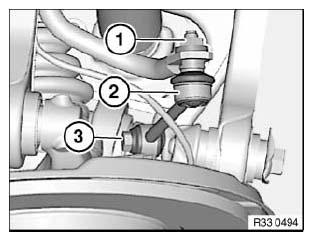

Release nut (1), gripping with special tool 31 1 140 OPEN-END WRENCH WAF 16/18 in the process.
Installation:
Replace self-locking nut.
Tightening torque 33 55 2AZ. See 33 55 STABILIZER BAR
Release screw (3).
Tightening torque 33 55 3AZ. See 33 55 STABILIZER BAR
Remove stabilizer link (2) towards top.
