33 41 153 Replacing Wheel Bearing (85 MM) On Rear Axle Shaft On Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 3 261
33 3 262
33 3 263
33 3 264
33 3 265

Necessary preliminary tasks:

Remove drive flange of rear axle shaft. See 33 41 005 REPLACING LEFT DRIVE FLANGE ON REAR AXLE SHAFT

Press retaining ring (1) together using pliers and remove.

Installation:

Replace circlip.

Check seating of circlip, correct if necessary.

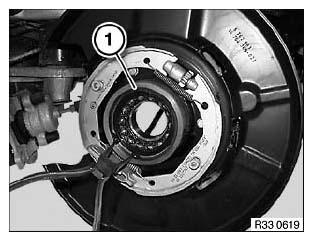

Fig 1: Identifying Retaining Ring

G04726531

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out wheel bearing with special tools 33 3 261, 33 3 263 and 33 3 262.

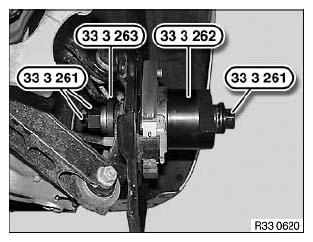

Fig 2: Identifying Special Tools (33 3 261), (33 3 263) & (33 3 262)

G04726535

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Do not reuse old wheel bearing!

Black-dyed multipole seal (1) must point to centre of vehicle!

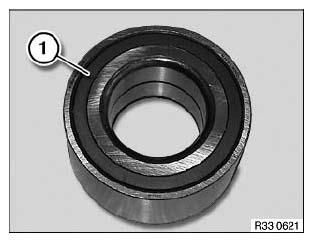

Fig 3: Identifying Black-Dyed Multipole Seal

G04726536

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check installation position of wheel bearing (1), correct if necessary.

Draw in wheel bearing (1) with special tools 33 3 261, 33 3 265 and 33 3 264.

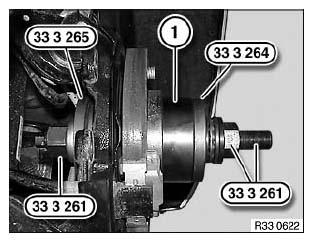

Fig 4: Identifying Special Tools (33 3 261), (33 3 265) & (33 3 264)

G04726537

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Adjust handbrake. See 34 10 014 ADJUSTING HANDBRAKE
