33 41 153 Replacing Wheel Bearing (75 MM) On Rear Axle Shaft On Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 031
33 4 041
33 4 042
33 4 043
33 4 047
33 4 048
33 4 049

Necessary preliminary tasks:

Remove drive flange of rear axle shaft. See 33 41 005 REPLACING LEFT DRIVE FLANGE ON REAR AXLE SHAFT

Press retaining ring (1) together using pliers and remove.

Installation:

Install retaining ring (1).

Check seating of retaining ring (1), correct if necessary.

Fig 1: Identifying Retaining Ring

G04726531

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out wheel bearing with special tools 33 4 041, 33 4 042, 33 4 031, 33 4 048 and 33 4 043.

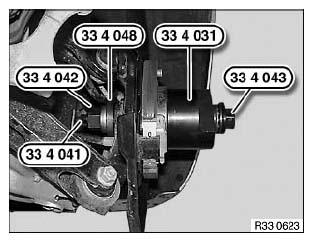

Fig 2: Identifying Special Tools (33 4 041), (33 4 042) & (33 4 031)

G04726532

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not reuse old wheel bearing!

Installation:

Draw in new wheel bearing (1) with special tools 33 4 041, 33 4 042, 33 4 049, 33 4 047 and 33 4 043.

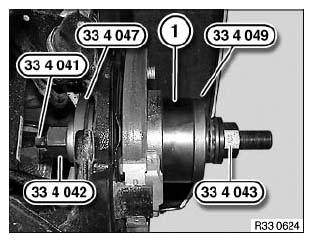

Fig 3: Identifying Special Tools (33 4 041), (33 4 042) & (33 4 049)

G04726533

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Adjust handbrake. See 34 10 014 ADJUSTING HANDBRAKE
