33 31 ... Overview of Rear Axle Carrier With Rubber Mounts

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

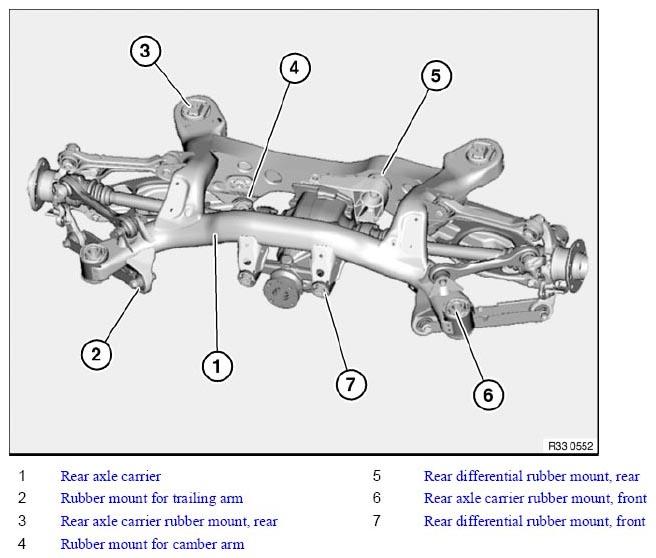

Fig 1: Identifying Rear Axle Carrier Rubber Mount, Rear Axle Carrier & Differential Rubber Mount
G04726438Courtesy of BMW OF NORTH AMERICA, INC.
