Special tools required:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

31 5 130. See 31 5 130 SET OF IMPACT DRIFTS

Necessary preliminary tasks:

Remove right output shaft. See 31 60 000 Removing and Installing/Replacing Left or Right Output Shaft

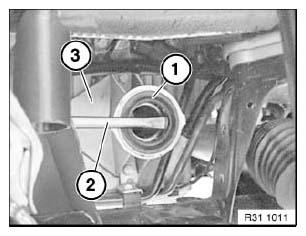

Lever shaft seal (1) with a screwdriver (2) out of bearing block (3).

Fig 1: Identifying Lever Shaft Seal And Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

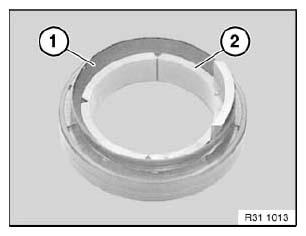

NOTE: Protective sleeve (2) serves to protect the sealing lips of shaft seal (1) from being damaged when the output shaft is inserted into the bearing block.

Fig 2: Identifying Protective Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

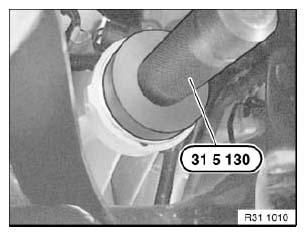

Drive in shaft seal with special tool 31 5 130 . See 31 5 130 SET OF IMPACT DRIFTS as far as it will go.

Fig 3: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
