31 35 021 Replacing Both Rubber Mounts of Stabilizer Mounting on Front Axle Carrier (AWD)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove stabilizer from front axle carrier. See 31 35 000 Removing and Installing/Replacing Front Stabilizer (AWD) and set down on tie rods.

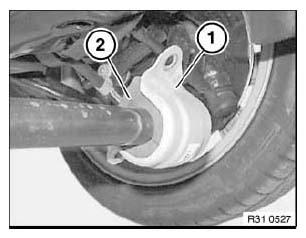

Remove retaining bracket (1) and rubber mount (2) on both sides.
Installation:
Keep retaining bracket (1), rubber mount (2) and stabilizer clean and free from oil and grease.
