Removal & Installation

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, and 2003 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove affected axle shaft. See DRIVE AXLE SHAFTS (FRONT)  or AXLE SHAFTS (REAR)  .
  2. Clean axle shaft.
  3. Grip axle shaft (1) in vise with protective jaws. Joint (2) is wheel side and joint (3) is transmission side. See Fig 1.
  4. Release retainers (1 and 2) and pull back boot (3). See Fig 2.
  5. Press off joint (1) via contact pressure of retaining ring on shaft (2). See Fig 3.
  6. Lever out retaining ring (1). See Fig 4.
  7. Pull off boot (1) over splined shaft (2). See Fig 5.
  8. Carefully clean all parts with a cloth.
  9. Installation is reverse of removal.
  10. Regrease constant velocity joint with fresh grease from repair kit.
  11. Install new retaining ring.
  12. Push on joint until retaining ring can be heard to snap into place.

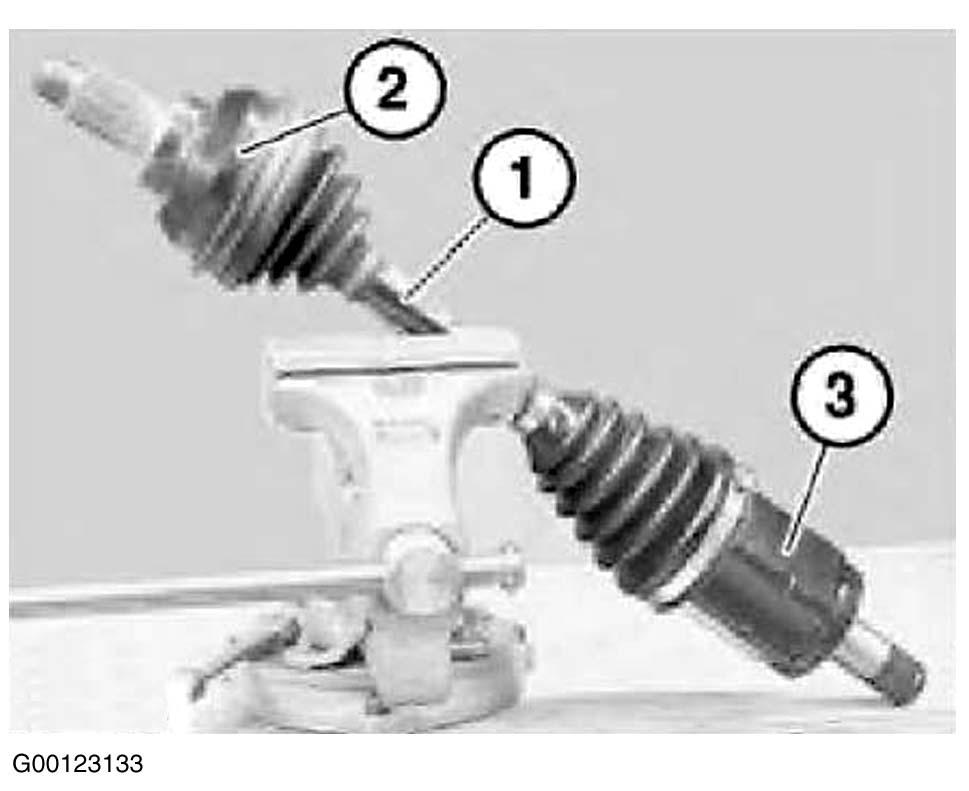

Fig 1: Locating Axle Shaft Components
G00123133Courtesy of BMW OF NORTH AMERICA, INC.

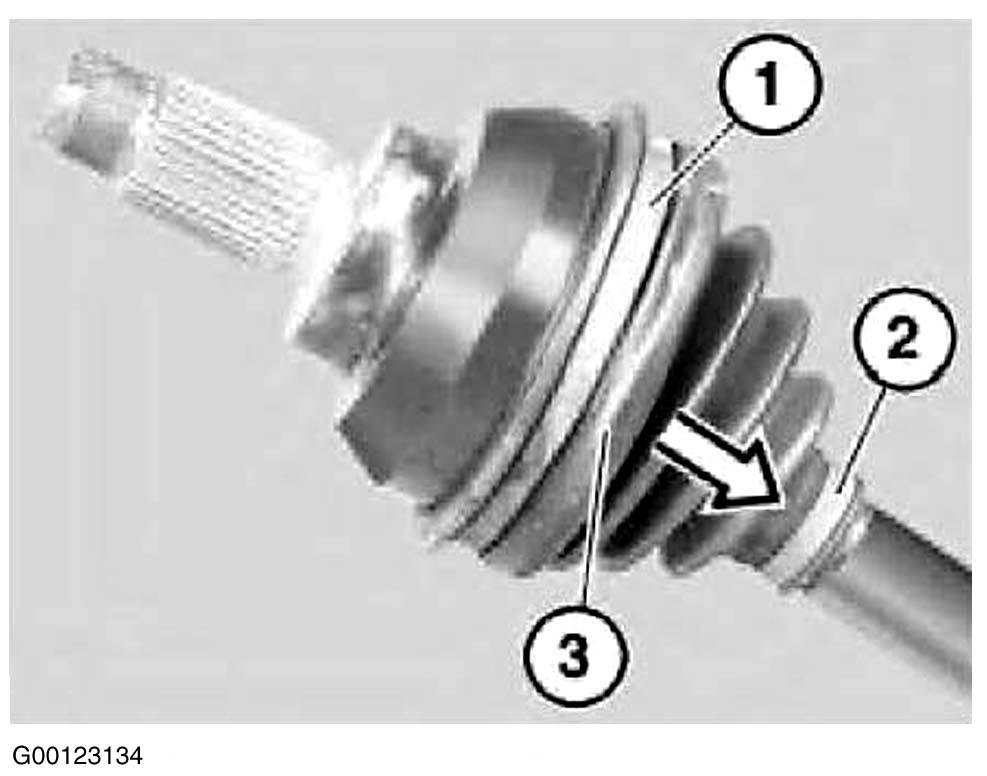

Fig 2: Locating Retainers
G00123134Courtesy of BMW OF NORTH AMERICA, INC.

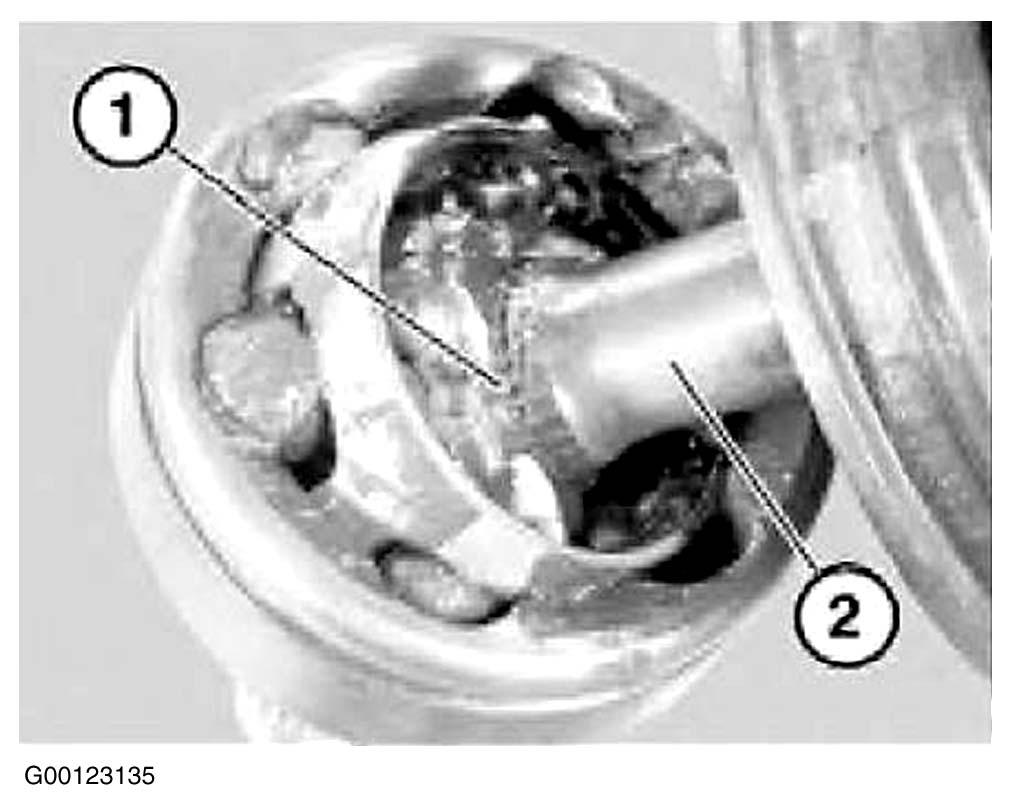

Fig 3: Pressing Off Joint
G00123135Courtesy of BMW OF NORTH AMERICA, INC.

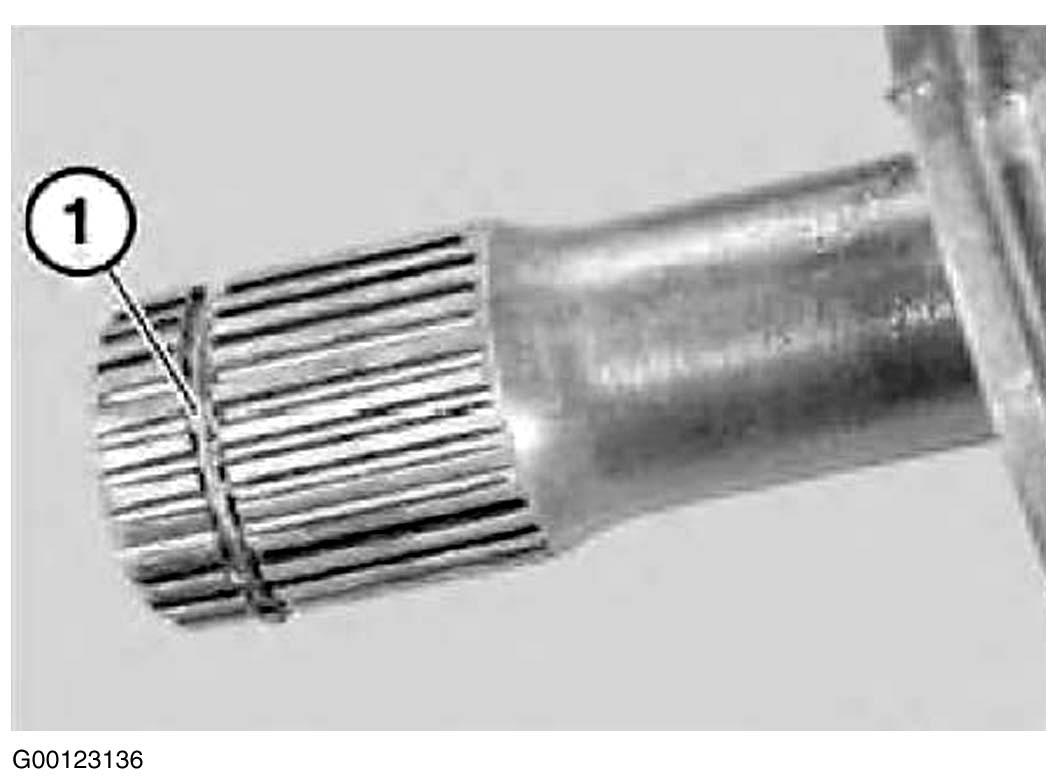

Fig 4: Locating Retaining Ring
G00123136Courtesy of BMW OF NORTH AMERICA, INC.

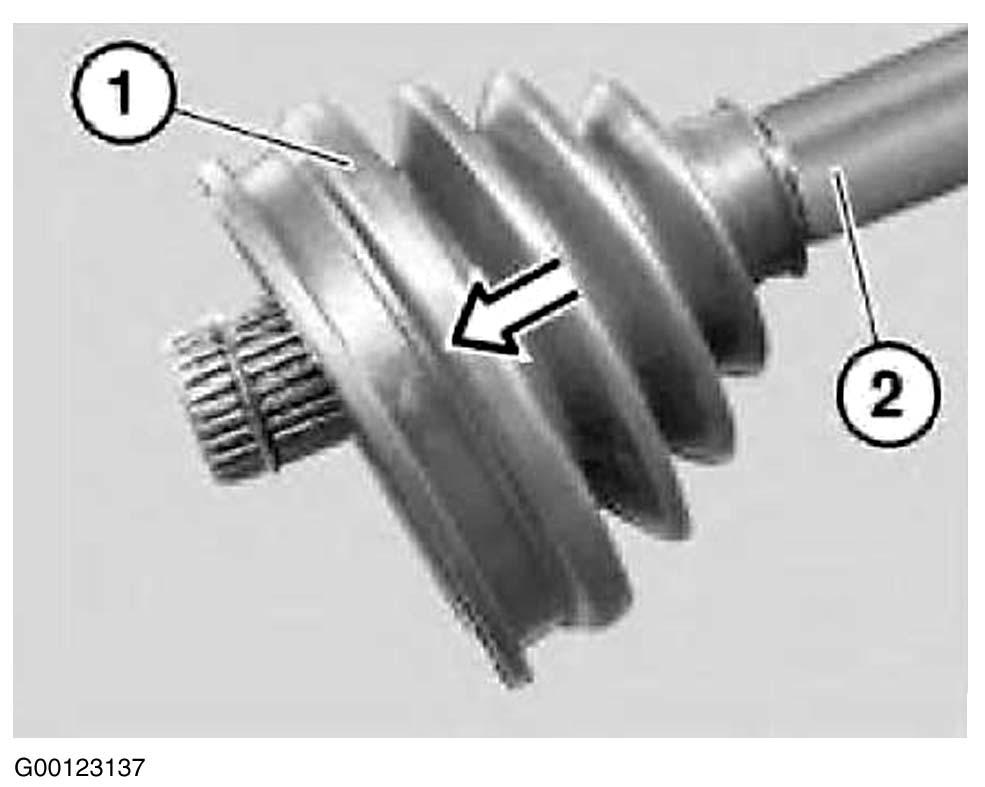

Fig 5: Pulling Off Boot
G00123137Courtesy of BMW OF NORTH AMERICA, INC.
