36 1 250 Wheel hub grinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For cleaning wheel hubs

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E86, E87, E90, E92, R50, R52, R53, R55, RR1, RR2

SI number: 1 15 03 (005)

Order number: 36 1 250 Wheel hub grinder

Consisting of:

1 = 36 1 251 Basic body

Note: Basic body with mounting screws (slotted pan-head screw)

2 = 36 1 252 Grinding wheel

3 = 36 1 253 Slotted pan-head screw (3 x)

Note: For securing grinding wheel on basic body

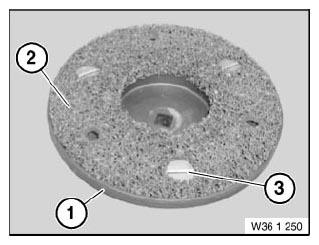

Fig 1: Identifying Wheel Hub Grinder (36 1 250) Components And Assembly
G04739508Courtesy of BMW OF NORTH AMERICA, INC.
