Clutch Master Cylinder: Removal

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trim under left side of instrument panel. Remove microfilter housing (1). See Fig 1 . Remove supply hose (1) from expansion tank. See Fig 2 . Remove retainer (1) and pull out bolts. Unfasten bolts. See Fig 3 and Fig 4 .
  2. Pull off retainer. Disconnect clutch master cylinder (2) from hydraulic line and remove with supply hose. See Fig 5 . Remove master cylinder from vehicle. Disconnect clutch master cylinder (2) from hydraulic line and remove with supply hose.
  3. Lever switch module (1) out of clutch master cylinder (2) with a screwdriver. Release plug connection (3) and disconnect plug (4) from switch module (1). See Fig 6 . During installation, switch module is protected against incorrect installation. Switch module must audibly snap into place. See Fig 7 .

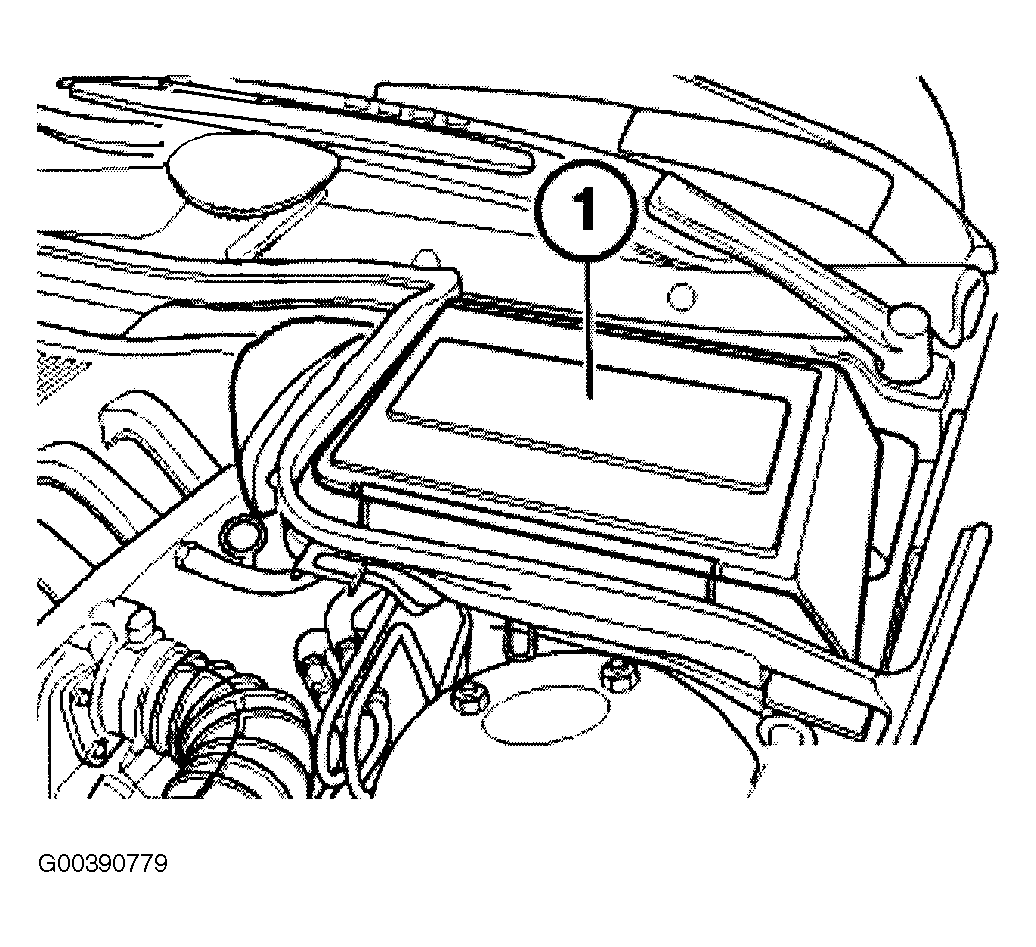

Fig 1: Identifying Microfilter Housing
G00390779Courtesy of BMW OF NORTH AMERICA, INC.

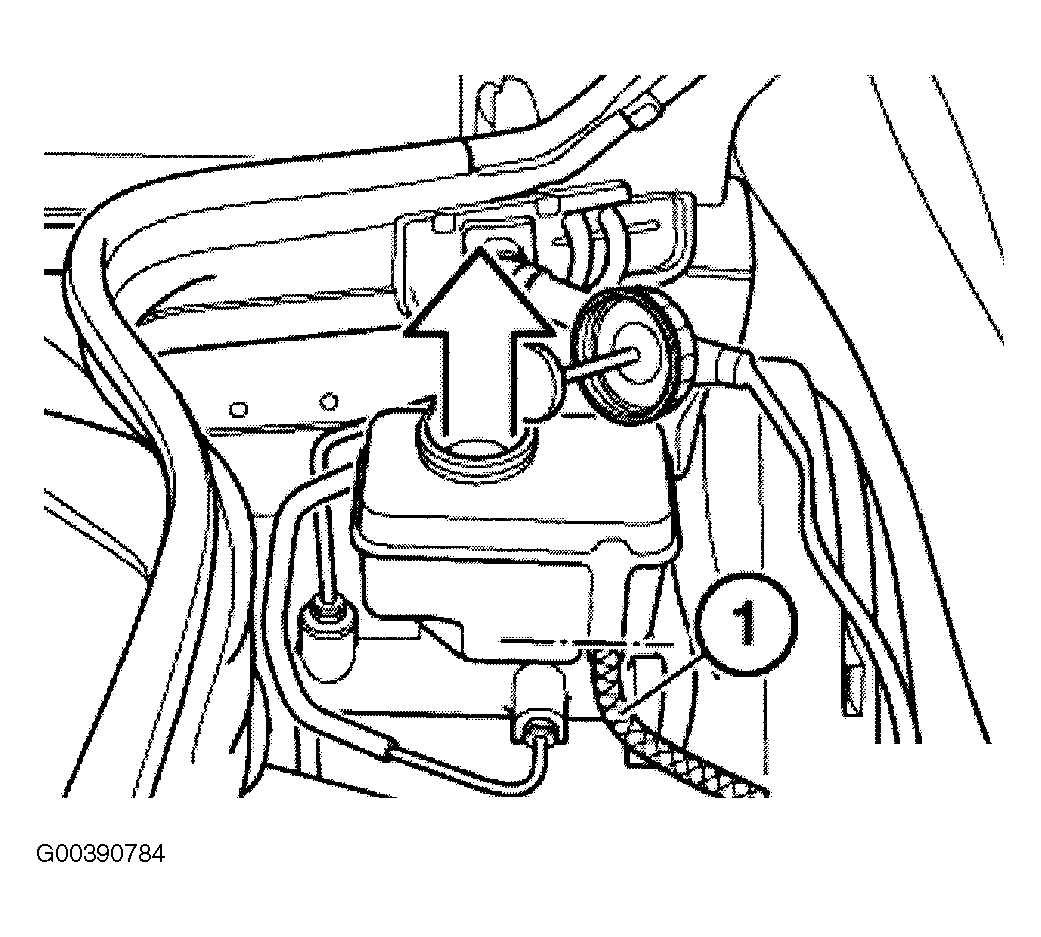

Fig 2: Removing Supply Hose From Expansion Tank
G00390784Courtesy of BMW OF NORTH AMERICA, INC.

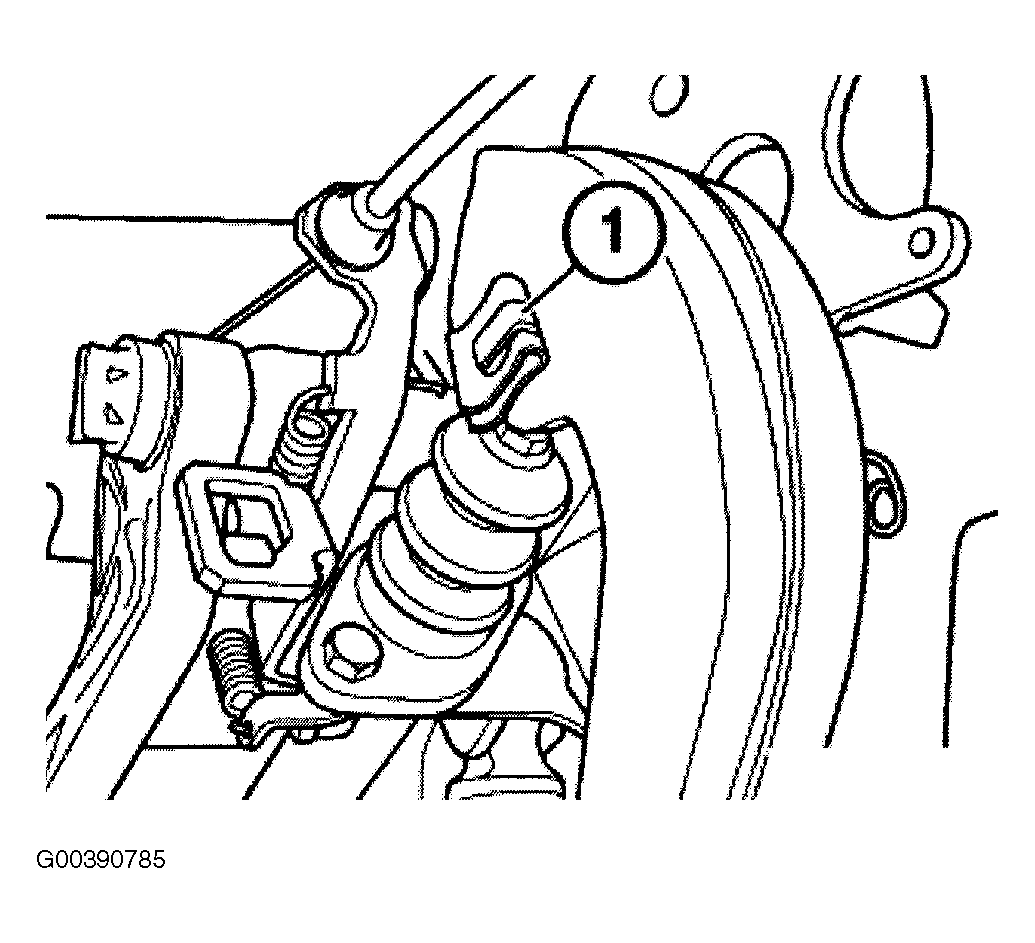

Fig 3: Removing Bolt Retainer
G00390785Courtesy of BMW OF NORTH AMERICA, INC.

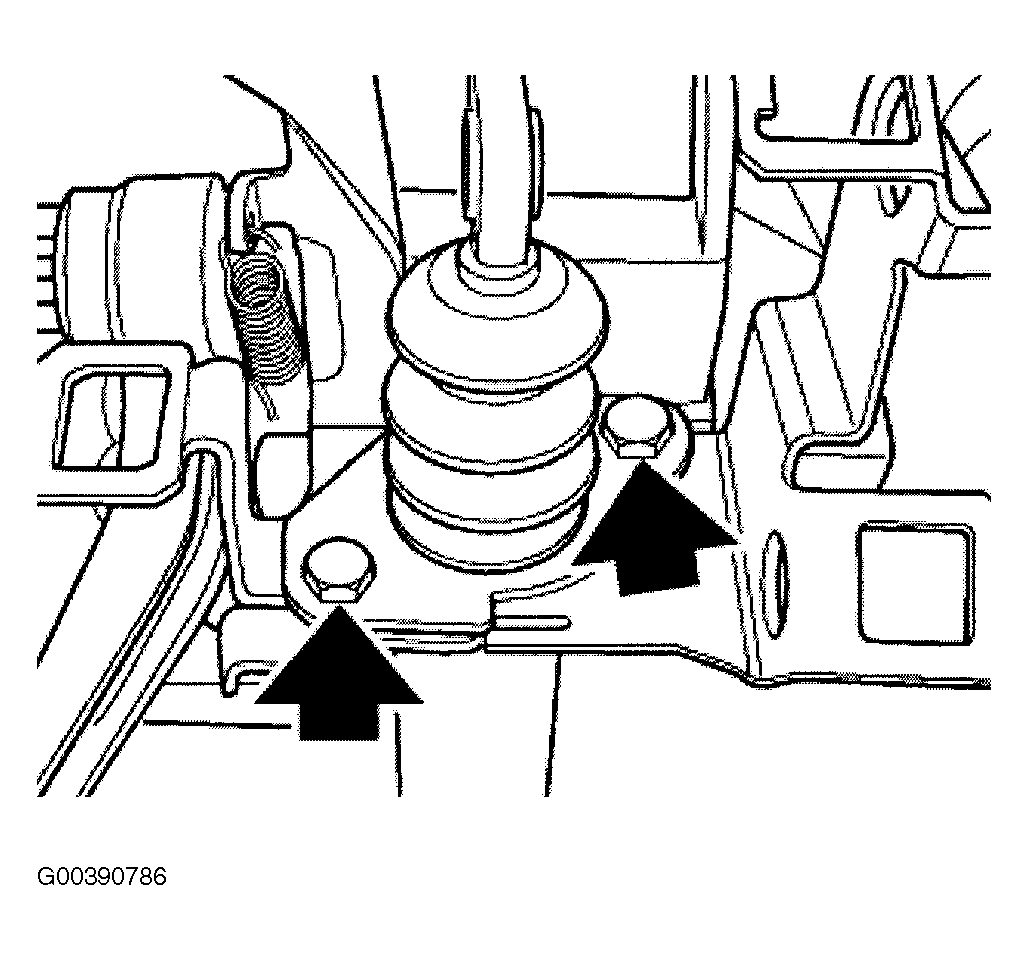

Fig 4: Removing Bracket Bolts
G00390786Courtesy of BMW OF NORTH AMERICA, INC.

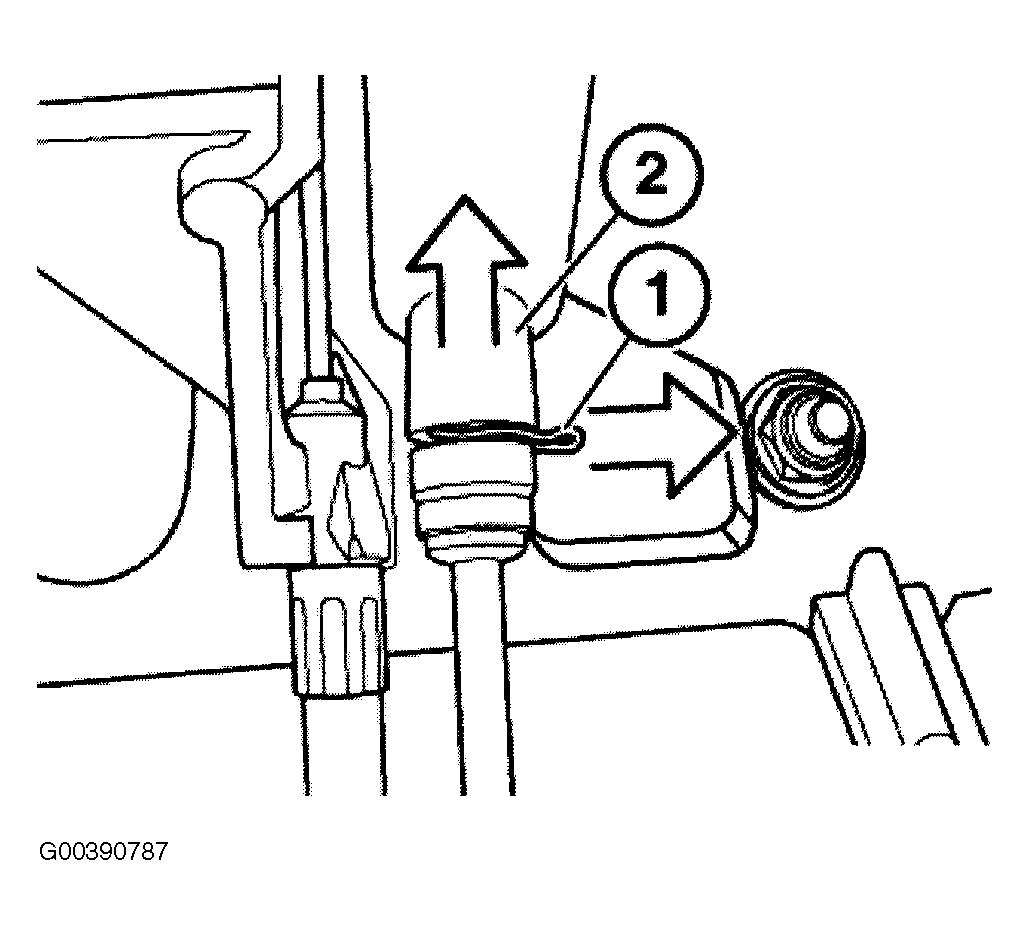

Fig 5: Removing Master Cylinder
G00390787Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Levering Out Shift Element
G00386976Courtesy of BMW OF NORTH AMERICA, INC.
Fig 7: Shift Element Snapping Audibly Into Place
G00386977Courtesy of BMW OF NORTH AMERICA, INC.
