Section 12 (Clutches - 5 Series (E39)): Description
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Clutch is single plate, dry-disc type. Flywheel is a dual mass type. Diaphragm spring type pressure plate uses a vibrational damper. Release bearing is operated by slave cylinder push rod and release lever.

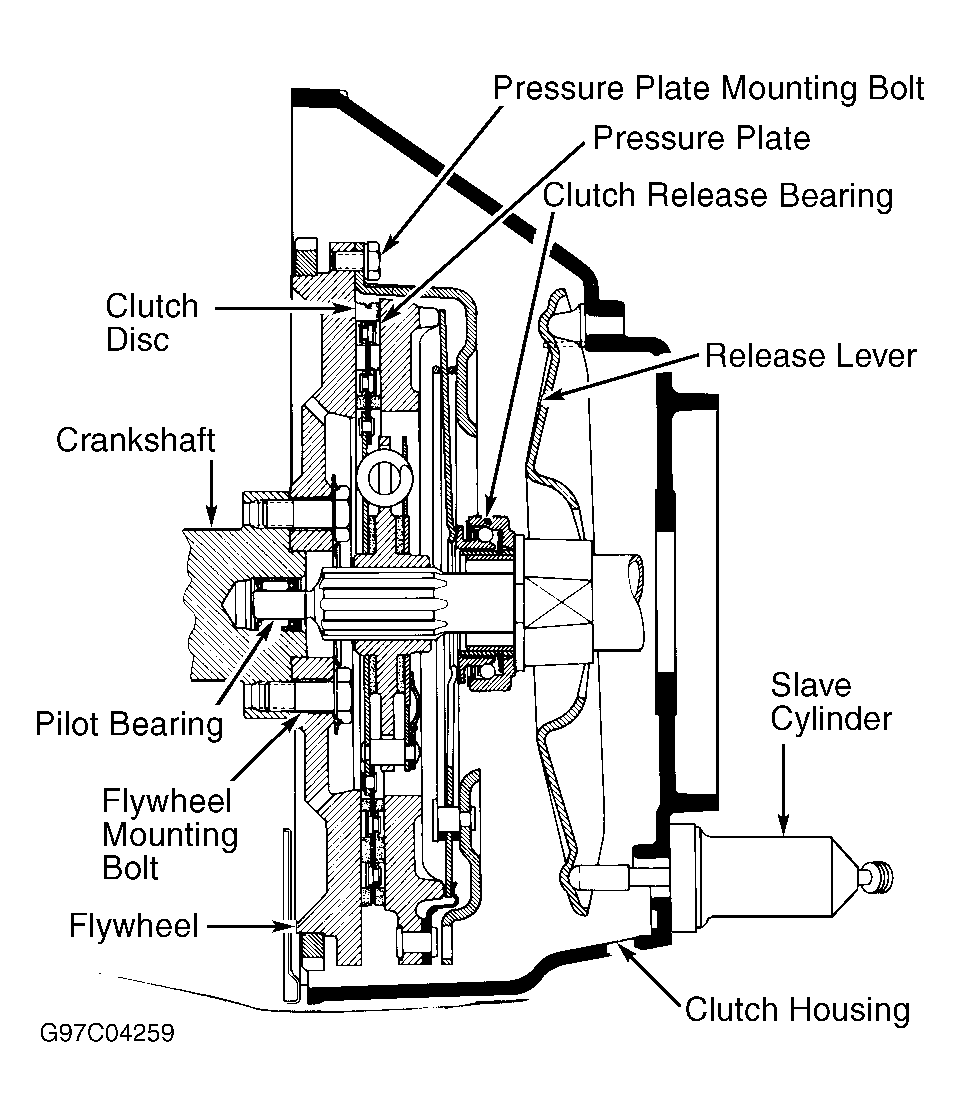

Slave cylinder is mounted on clutch housing, and extends inside housing. See Figure . Clutch master cylinder is connected to clutch pedal by a push rod. Master cylinder is mounted to firewall.
For additional information, see MANUAL TRANSMISSION - SERVICING article.
