Toe-In Adjustment: Front

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

To adjust toe-in/toe-differential angle, move wheels and steering gear to straight-ahead position. Release lock nut. Adjust toe-in to specified value by turning tie rod at hexagon. See Fig 1. Note that tie rods can have a lock screw connection or a clamping ring screw connection. See Fig 2-Fig 3 .

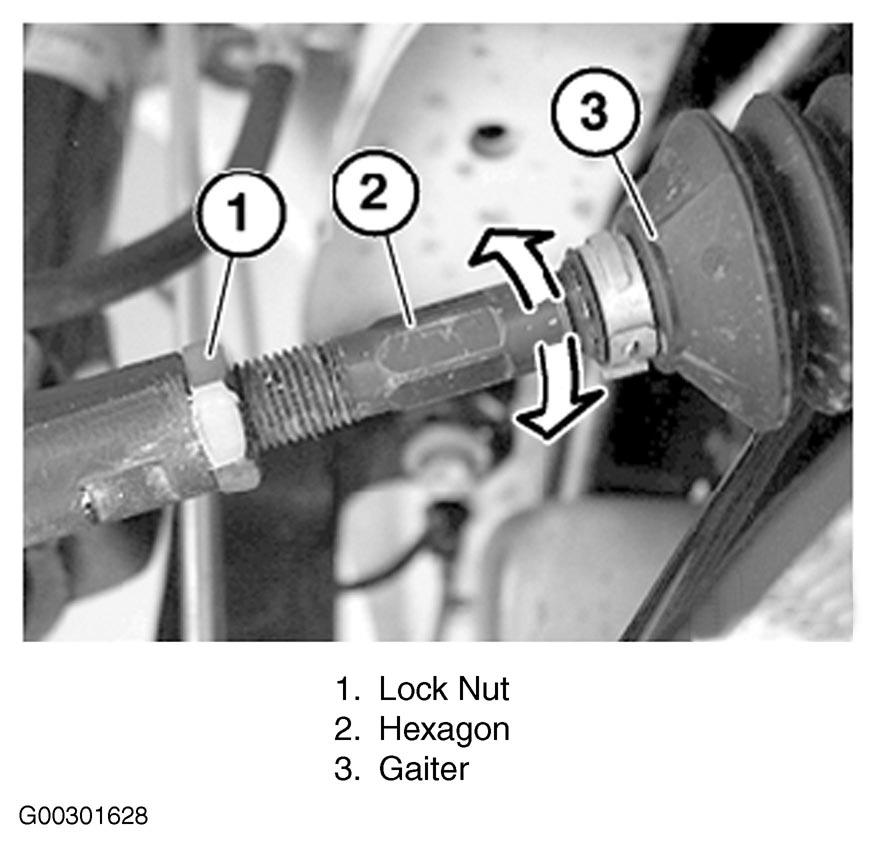

Fig 1: Adjusting Toe-In/Toe-Differential Angle

Courtesy of BMW OF NORTH AMERICA, INC.

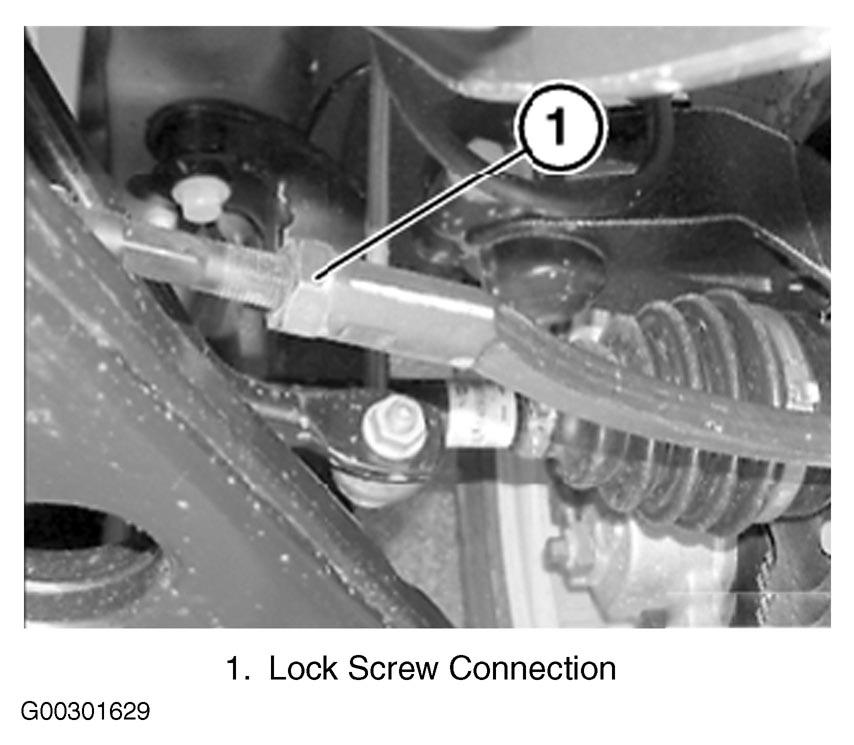

Fig 2: Identifying Tie Rods With Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

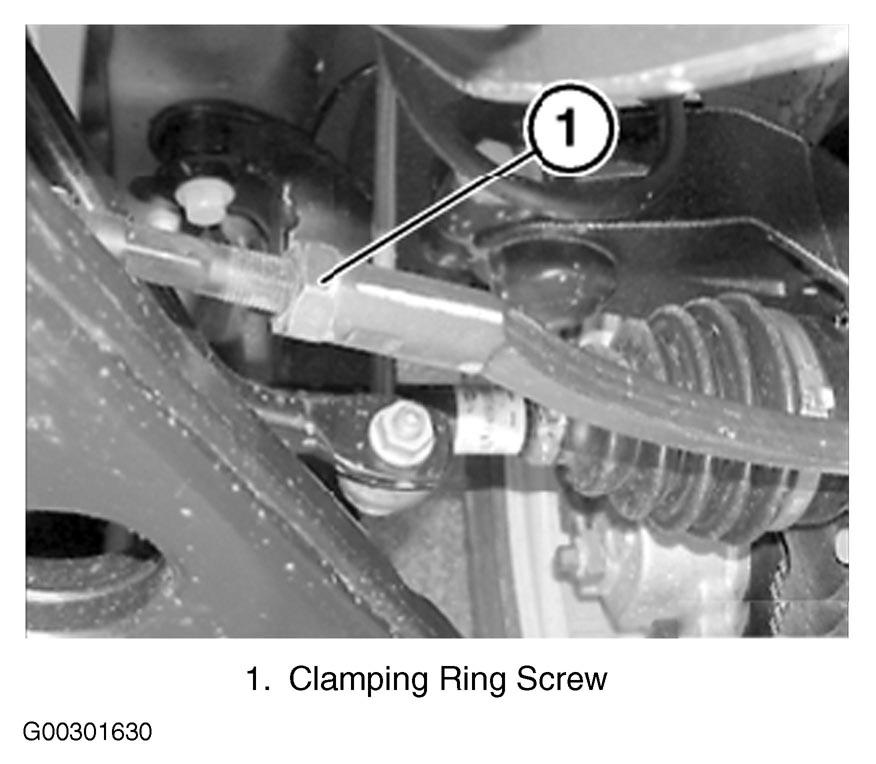

Fig 3: Identifying Tie Rods With Clamping Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.
