72 11... Location of checkpoints for front seat with seat-integrated belt system (SGS)

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners.

Incorrect handling can trigger off the airbag or the belt tensioner and thus cause injuries.

The plug connections for the pyrotechnical seat belt tensioners are no longer marked "Orange"!

IMPORTANT:

If a seat belt damaged in an accident is replaced, always check the seat affected for damage.

Checking contact surface of inertia reel for deformation:

Partially strip seat backs.

Front view of stripped front seat (seat surface):

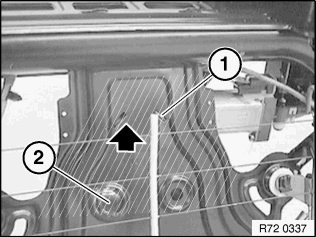

The contact surface of the inertia reel (1) must not show any signs of deformation. Contact surface must be flat!

Retaining screw of inertia reel (2) must not show any signs of deformation or cracks!

Replace front seat if contact surface is deformed, and/or deformation is identified in area of retaining screw of inertia reel.

Fig 1: Identifying Inertia Reel Contact Surface And Screw (Front View)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear view of stripped front seat:

The contact surface of the inertia reel (1) must not show any signs of deformation. Contact surface must be flat!

Retaining screw of inertia reel (2) must not show any signs of deformation or cracks!

Thread must not be damaged!

Replace front seat if contact surface is deformed, and/or deformation is identified in area of retaining screw of inertia reel.

Fig 2: Identifying Inertia Reel Contact Surface And Screw (Rear View)

Courtesy of BMW OF NORTH AMERICA, INC.

Checking seat back for torsion/deformation:

Partially strip seat backs.

Rear view of stripped front seat:

Check surface of Y-plate (1) for deformation.

No dents, kinks or any other forms of damage should be discernible.

Fig 3: Identifying Y-Plate (Rear View)

Courtesy of BMW OF NORTH AMERICA, INC.

Front view of stripped front seat (seat surface):

Check surface of Y-plate (1) for deformation.

No dents, kinks or any other forms of damage should be discernible.

If deformation is visible, this points to seat back torsion.

The front seat must be replaced if there is evidence of deformation.

Fig 4: Identifying Y-Plate (Front View)

Courtesy of BMW OF NORTH AMERICA, INC.

Checking parallel position of head restraint to seat back:

Remove head restraint.

Press back cover and padding of head restraint as far as possible.

Head restraint carrier must not be deformed. There should be no discernible deviation all round when a 90° angle is applied!

The front seat must be replaced if there is evidence of deformation.

Fig 5: Checking For Deformation With 90° Angle Applied

Courtesy of BMW OF NORTH AMERICA, INC.

If doubts arise during measurement, strip head restraint completely and reinstall head restraint carrier.

Strip seat back so that parallelism to the seat back can be checked with the head restraint carrier fitted.

Measure parallelism of head restraint carrier to seat back.

If the head restraint carrier is not deformed and this check identifies a deviation in parallelism, this means that the seat back is deformed.

Replace front seat.

Fig 6: Checking For Deviation In Parallelism

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If a seat belt which is damaged due to an accident is exchanged, always check the retaining bracket of the belt tensioner on the seat runner for damage and replace if necessary.

A bent seatbelt tensioner retaining bracket on the seat runner may make it impossible to adjust the height of the seat!

Check retaining bracket (1) of pyrotechnical belt tensioner on seat runner for damage (bending), replace if necessary.

Repair kit, refer to BMW Parts Service.

To replace retaining bracket, release screw (2) and remove retaining bracket (1).

Tightening torque: see 8AZ in 72 11 SEAT BELTS .

Fig 7: Identifying Retaining Bracket And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
