72 11 080 Removing and installing/replacing left or right seat-belt extender hand (until 09/07) (coupe)

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

The following steps must be performed if the belt extender extends, but it does not deliver the safety belt or loosing it.

Check if the clamping bushes are installed in the vehicle on both sides. Retrofit clamping bushes if necessary.

Remove the cover (1) from the slide rail.

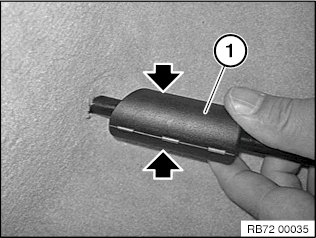

Fig 1: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Set the clamping bush (1) onto the slide rail with closures facing the vehicle exterior.

NOTE: Closures must always face the vehicle exterior.

Clamping bush (1) must snap audibly into place twice.

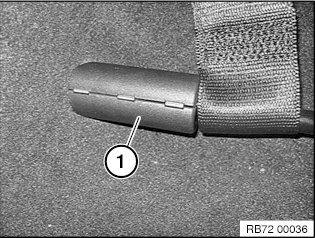

Fig 2: Identifying Clamping Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the clamping bush (1) without gap to the carpet.

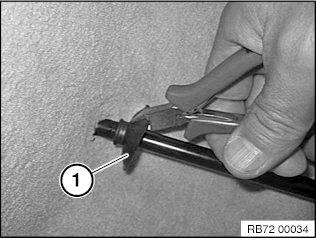

Fig 3: Mounting Clamping Bush To Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Open door.

Insert special tool 51 0 341 in rotary striker of door lock and close rotary striker manually.

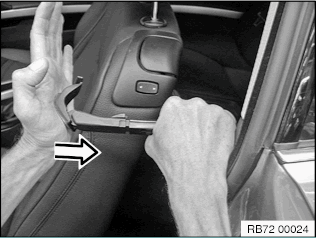

Fig 4: Identifying Special Tool 51 0 341 In Rotary Striker Of Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Operate ignition (Terminal 15) to extend the seat belt extender.

For working area, see marked area.

NOTE:

Driver's side:

The seat-belt extender remains in the extended position for 1 minute. (If applicable, repeat procedure. Do not hold the seat-belt extender down with resistance)

Front passenger:

Apply a suitable load on the front passenger seat to keep the seat-belt extender in the extended position for 1 minute. (If applicable, repeat procedure. Do not hold the seat-belt extender down with resistance)

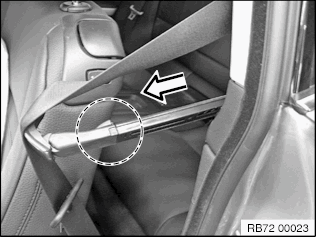

Fig 5: Identifying Seat-Belt Extender In Extended Position

Courtesy of BMW OF NORTH AMERICA, INC.

Release the first detent position:

IMPORTANT:

Risk of damage!

Hold the linkage of the seat belt extender to prevent ripping of the rack on the gearbox.

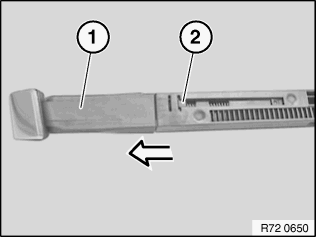

Firmly pull seat-belt extender hand (1) in direction of arrow to unclip retaining lug (2) from seat-belt extender.

Fig 6: Identifying Extender Hand And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

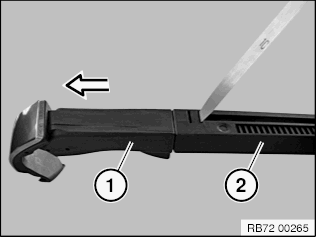

Set the removal tool (1) that is included in the spare parts kit into the gap between the loss prevention element and bridge.

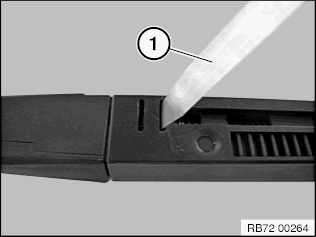

Fig 7: Holding Removal Tool Between Loss Prevention Element And Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Pull seat-belt assistant hand (1) out of seat-belt extender (2).

Loss prevention element must pass through underneath bridge without damaging it.

Fig 8: Pulling Assistant Hand Out Of Seat-Belt Extender

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Hold the rack while installing (latching) the seat-belt assistant hand to prevent damage to the rack and engine.
