72 12 050 Removing and installing or replacing side airbag, front left or right seat (convertible)

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY REGULATIONS when handling airbag modules.
Incorrect handling may result in activation of the crash-active head restraint and thereby cause injury.

Disconnect BATTERY EARTH LEAD
Remove REAR PANEL

Unhook backrest cover (1) in marked area.

Fig 1: Identifying Backrest Cover

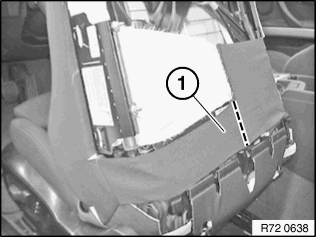

G00528068

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock PLUG CONNECTION (1) and disconnect.

Release screw (2).

Installation:

Replace screw.

Tightening torque: 40 +/- 5 Nm.

Fig 2: Identifying Connector And Screw

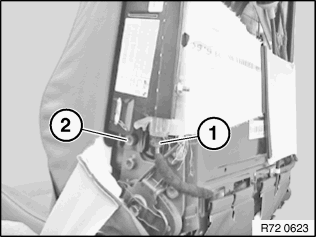

G00528069

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock airbag module (1) in downward direction and remove sideways from backrest frame.

Fig 3: Removing Airbag Module

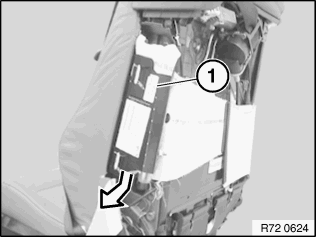

G00528070

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage welt from airbag module (1).

Fig 4: Disengaging Welt From Airbag Module

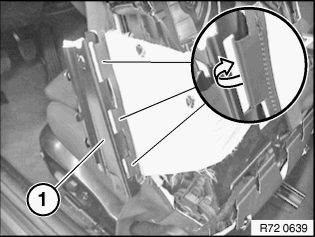

G00528071

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bracing (1) must be fitted under airbag module.

Close bracing (1) of backrest cover before fitting airbag.

Feed airbag module (2) into bracing openings (1) and mount on backrest frame.

Fig 5: Identifying Backrest Cover Bracing And Airbag Module

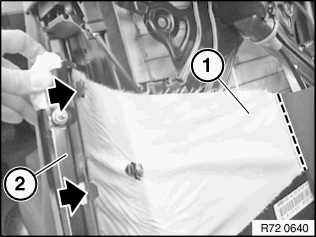

G00528072

Courtesy of BMW OF NORTH AMERICA, INC.
