67 62 020 Removing and installing/replacing flat motor for rear left or right power window unit (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR POWER WINDOW UNIT .

Release screws (1), tightening torque: 3.5 Nm

Carefully turn power window unit (2) over.

Fig 1: Identifying Power Window Unit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove flat motor (1) from power window unit (2).

Installation:

Fit flat motor (1) exactly on teeth of power window unit.

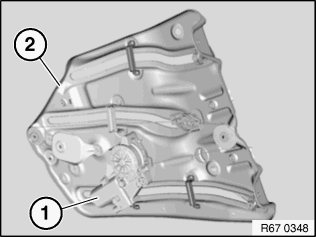

Fig 2: Identifying Power Window Unit And Flat Motor

Courtesy of BMW OF NORTH AMERICA, INC.
