67 11 590 Removing and installing/replacing actuator drive for glove box locking mechanism (convertible)

Open glovebox.

Release locks.

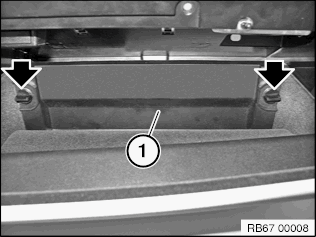

Remove cover (1).

Fig 1: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

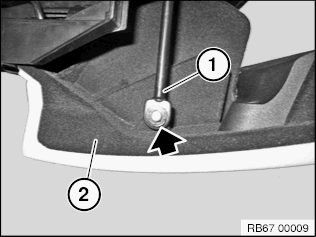

Remove circlip from damper (1).

Detach damper (1) from glove box flap (2).

Fig 2: Identifying Glove Box Flap, Damper, And Circlip For Damper

Courtesy of BMW OF NORTH AMERICA, INC.

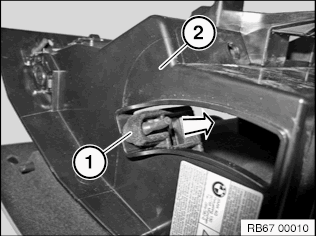

Reach through the opening that was exposed during the first work step and detach the stop pad (1) in the direction of the arrow from the glove box (2).

Fig 3: Detaching Stop Pad From Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.

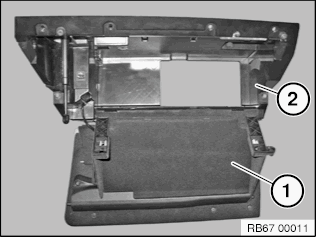

Detach flap (1) from glove box (2) as shown.

Fig 4: Identifying Glove Box And Flap

Courtesy of BMW OF NORTH AMERICA, INC.

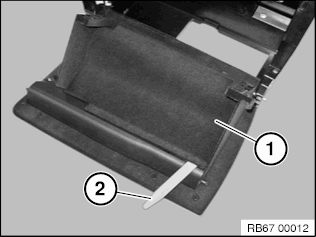

Unclip the cover inside (1) with a suitable tool (2).

Fig 5: Unclipping Cover Inside Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

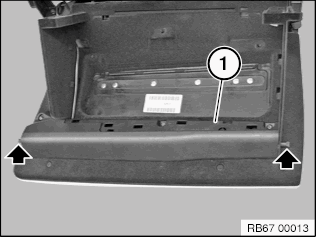

Press the locks to the inside at the marked points and secure with suitable tool at point (1).

Fig 6: Pressing Locks To Inside At Marked Points And Securing With Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

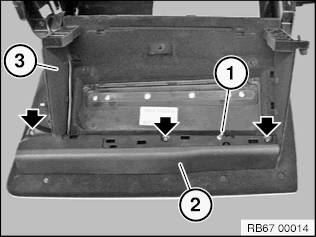

Example: Securing with pop rivet (1).

Release screws at marked points.

Detach lock unit (2) from glove box flap (3).

Fig 7: Detaching Lock Unit From Glove Box Flap

Courtesy of BMW OF NORTH AMERICA, INC.

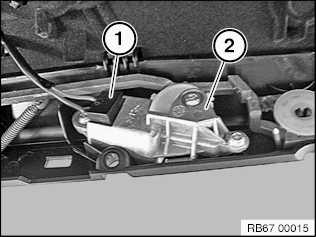

Release plug connection (1) at actuator drive (2) and disconnect.

Remove lock unit with actuator drive (2).

Fig 8: Identifying Actuator Drive And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Removed lock unit with actuator drive (1).

Fig 9: Identifying Removed Lock Unit With Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.
