65 50 011 Removing and installing (replacing) video module for on-board monitor (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary tasks:

Disconnect battery negative lead .
Remove luggage compartment floor panel .

NOTE: Follow instructions for handling optical fibres .

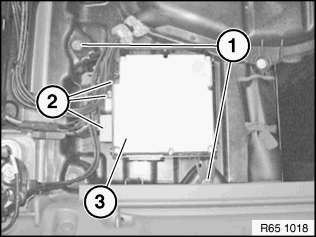

Release screws (1).

Disconnect plug connections (2) and remove bracket (3) with video module.

Fig 1: Identifying Connectors, Screws, And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure correct cable routing.

Replacement:

Release screws (1) on both sides and remove video module (2) from bracket.

Carry out programming/coding .

Fig 2: Identifying Video Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
