65 12 220 Removing and installing/replacing satellite radio (only for US models starting at 09/2009)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on Notes On Protection Against Electrostatic Damage (ESD Protection) .

NOTE: Follow instructions for handling optical fibres. .

Necessary preliminary tasks:

Disconnect negative battery cable .
Remove luggage compartment floor panel .

Disconnect plug connection (1).

Release screws (2) and feed out satellite tuner (3).

Installation:

Unlock plug connections correctly.
Bracket (4) must be inserted in guides on floor pan.

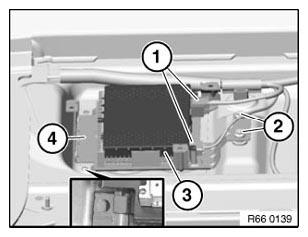

Fig 1: Removing Satellite Tuner, Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove bracket (2) from satellite tuner (3).

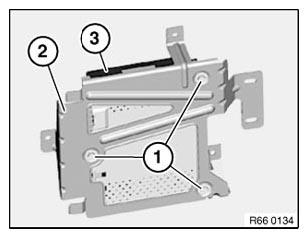

Fig 2: Remove Bracket From Satellite Tuner

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, please observe:

Record ID number (2) of the removed device.

NOTE: The ID number (2) can be found on the label of the housing. Above the barcode the text reads "Sirius ID" (1) and next to it is the company's logo "Sirius Satellite Radio" (3).

Record ID number (2) of the new device.

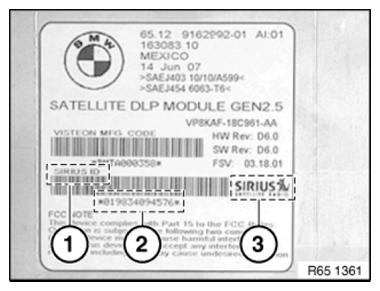

Fig 3: Identifying Sirius Logo, ID Number, And "Sirius ID" Text Above Barcode

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/encoding .

NOTE: Please contact Sirius. Use the ID number to cancel current device and register new one.
