65 12 072 Removing and installing (replacing) amplifier (Top hi-fi system) (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary work:

Remove Luggage Compartment trim on left side panel.

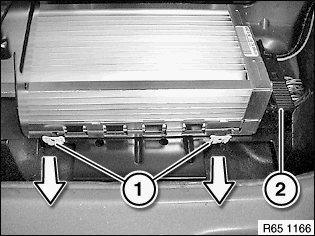

Pull out retaining plates (1) in direction of arrow and feed out amplifier towards top. Unfasten plug connection.

Fig 1: Pulling Out Retaining Plates And Feeding Out Amplifier Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To prevent rattling, make sure retaining plates (1) are correctly seated in retaining tabs (2).

Fig 2: Identifying Retaining Plates And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Until 09/2009 a Top HiFi amplifier with a different pin assignment is installed!

Install cable jumper consisting of socket (1) (BMW Parts Service 6901844) and wire jumper (2) in connector (3).

Create wire jumper (2) from wire (cross-section 0.75 mm) and two stops (BMW Parts Department 1393724). Then connect pins 1 and 2 in the socket (1) with wire jumper (2).

NOTE: Connector chamber (4) is not included in current version and remains unused in new replacement Top HiFi amplifier!

Fig 3: Identifying Wire Jumper, Socket, Connector, And Connector Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING
