65 75 090 Removing and installing/replacing interior movement detection module in left or right B-pillar (convertible)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on Protection Against Electrostatic Damage (ESD Protection)
.
Necessary preliminary tasks:
Remove lower section of side trim

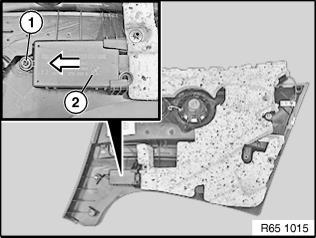

Release screw (1). Detach interior movement detection module (2) in direction of arrow from side trim.
Replacement:
Carry out PROGRAMMING/CODING
