65 75 080 Removing and installing/replacing interior movement detection module in left or right front door (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release bolt (1) and feed out interior movement detection module (2).

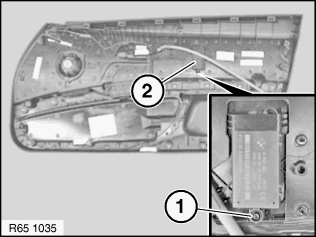

Fig 1: Identifying Interior Movement Detection Module And Bolt
G00528102Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING
