65 20 300 Removing and installing/replacing bumper antenna (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment trim on left .
Remove rear bumper trim .

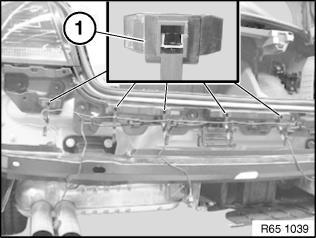

Unclip cable fasteners (1).

Fig 1: Unclip Cable Fasteners (1)

Courtesy of BMW OF NORTH AMERICA, INC.

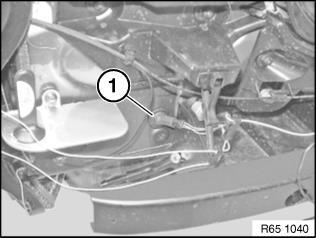

Pull out grommet (1).

Installation:

Make sure grommet (1) is correctly seated so as to avoid water ingress.

Fig 2: Make Sure Grommet (1) Is Correctly Seated So As To Avoid Water Ingress

Courtesy of BMW OF NORTH AMERICA, INC.

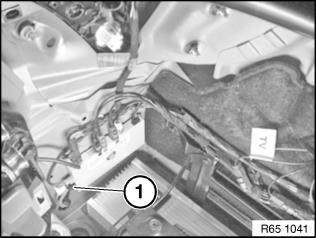

Disconnect plug connection (1) and feed out antenna lead.

Fig 3: Disconnect Plug Connection (1) And Feed Out Antenna Lead

Courtesy of BMW OF NORTH AMERICA, INC.
