65 20 250 Removing and installing/replacing rear telephone antenna (convertible)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear bumper trim
- Remove luggage compartment trim on left side panel
NOTE:
For purposes of clarity, the bumper bracket is shown removed.

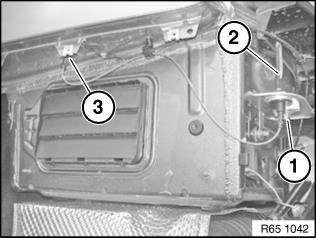

Release screw (1).
Turn telephone antenna (2) and feed out.
Feed out lead (3) and disconnect associated plug connection.
Installation:
Make sure grommet is correctly seated so as to avoid water ingress.
