65 20 220 Removing and installing/replacing rear window antenna amplifier (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Move lowerable hardtop into position shown.

Fig 1: Move Lowerable Hardtop Into Position

Courtesy of BMW OF NORTH AMERICA, INC.

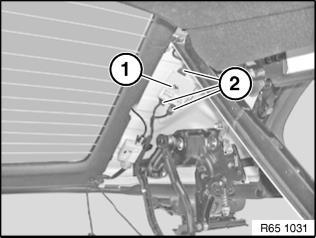

Release screw (1) and disconnect plug connections (2).

Fig 2: Release Screw (1) And Disconnect Plug Connections (2)

Courtesy of BMW OF NORTH AMERICA, INC.
