65 20 160 Removing and installing/replacing TV aerial (convertible)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment trim on left side panel
- Remove rear bumper trim
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

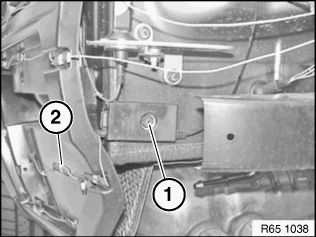

Release screw (1) and remove antenna.
Unclip antenna lead (2) on both sides completely.
Installation:
Ensure correct lead routing.
