65 20 150 Removing and installing/replacing backup antenna (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lower section of side trim .

For purposes of clarity, the lowerable hardtop is shown opened in the following work steps.

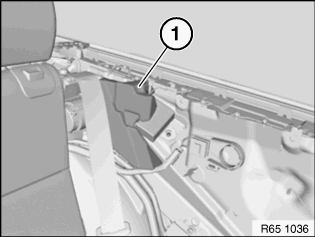

Remove sound insulation (1).

Installation:

Make sure sound insulation (1) is correctly seated.

Fig 1: Identifying Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

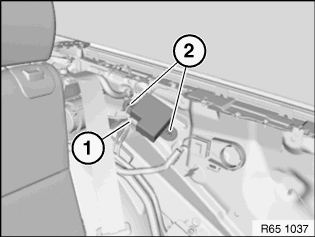

Disconnect plug connection (1).

Remove screws (2) and remove back-up antenna.

Fig 2: Identifying Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
