64 22 138 Removing and installing/replacing right fresh-air grille

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 335xi, 2012 BMW 328xi, and 2012 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove decorative strip on instrument panel on right

Lever out catches (2) and unclip right fresh-air grill (1) from right decorative strip on instrument panel (3).

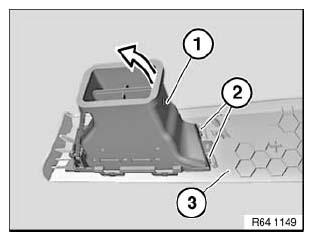

Fig 1: Right Fresh-Air Grill, Catches, Instrument Panel And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
