64 11 850 Replacing servodrive for rear compartment flap
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 335xi, 2012 BMW 328xi, and 2012 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
Necessary preliminary tasks:
- Remove trim for instrument panel, bottom right

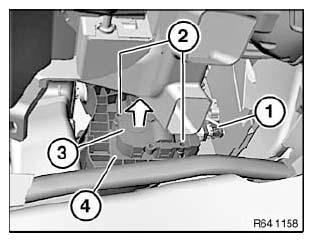

Unfasten plug connection (1) and disconnect.
Release screws (2).
Detach servodrive for rear compartment flap (3) in direction of arrow from heater/air conditioner (4).
Installation:
Place servodrive for rear compartment flap (3) exactly onto heater/air conditioner (4).
