64 11 273 Replacing water valve for heater
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 335xi, 2012 BMW 328xi, and 2012 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding! Work on the cooling system should only be carried out when the engine has cooled down.
Follow instructions for working on cooling system!
NOTE:
Disconnect coolant hoses on water valve.
Recycling
Coolant emerges when coolant lines are detached. Have a suitable collecting container ready.
Catch and dispose of emerging coolant.
Observe country-specific waste-disposal regulations.
Necessary preliminary tasks:
- Release oil reservoir from bracket and place to one side

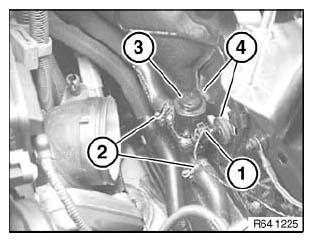

Disconnect plug connection (1).
Release hose clamps (2) and remove hoses.
Remove water valve (3) from mounting (4).
Installation:

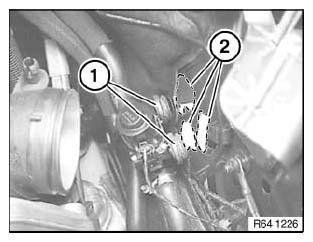

To avoid the buildup of noise, make sure that the rubber mounts on the water valve are securely seated in the mounting (2) on the frame side member.
After installation:
- Fill and vent cooling system and check for leaks
