63 21 180 Removing and refitting/replacing left or right rear light as fitted from 03/2010 (on side panel)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Remove cover (1) in direction of arrow from luggage compartment wheel arch trim (2).
Unfasten plug connection (1) and disconnect.
Unscrew nuts (2).
Remove rear light (1) rearwards from side panel (2).
Installation note:
Make sure gap is uniform all round between rear light (1) and side panel (2).
Installation note:

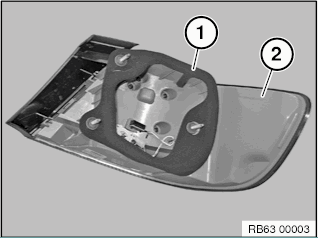

Make sure seal (1) is correctly seated on rear light (2).
