63 31 080 Removing and installing/replacing luggage compartment light (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs (interior lights) .

Pry out luggage compartment light (1) in direction of arrow.

Disconnect associated plug connection and remove luggage compartment light (1).

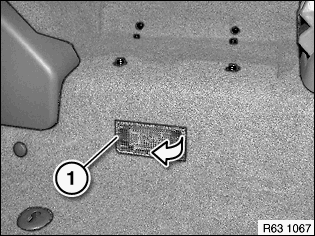

Fig 1: Prying Out Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, modify bulb .

Note type of bulb (see Fig 2).

Fig 2: Identifying Interior Lighting Bulb Types - E93

Courtesy of BMW OF NORTH AMERICA, INC.
